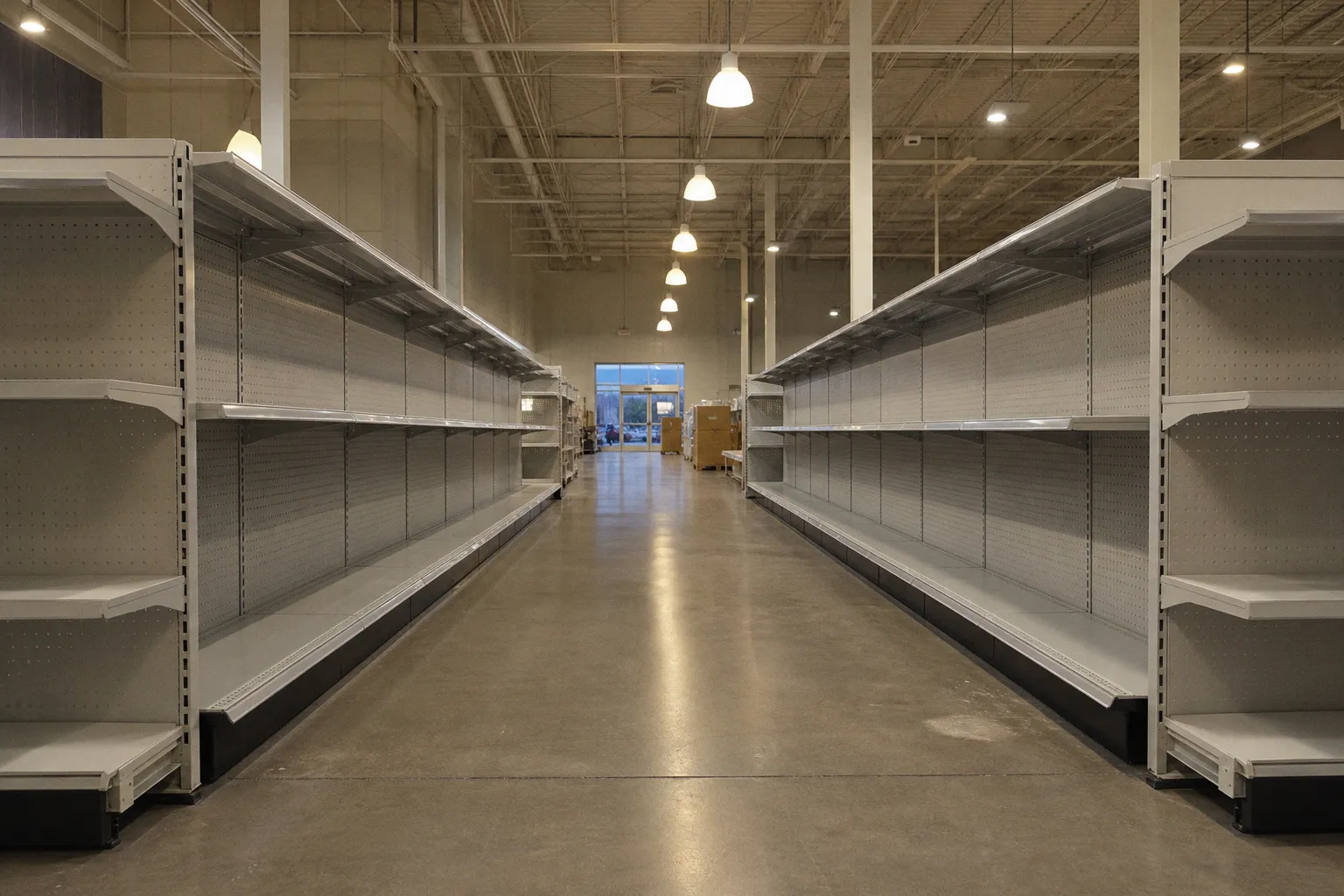

Gondola shelving setup: your roadmap to retail floor layout

The visible result may be minor wobble. The structural result is eccentric loading at the base, progressive loosening at connections, and a rack system that no longer performs as specified.

This gondola shelving layout planning guide starts with the variables that control the floor: aisle clearance, traffic direction, starter-and-adder sequencing, base geometry, steel thickness, and load distribution. Fixture color, sign holders, and shelf accessories come later. They do not compensate for a row that is incorrectly positioned or improperly supported.

Commercial gondola systems are modular, but they are not interchangeable in the casual sense. A 48-inch-wide adder section is not merely a cheaper 48-inch starter. A wall gondola is not a center-floor island placed against drywall. A 16-inch-deep shelf carrying packaged paper goods is not structurally equivalent to the same shelf carrying dense cans, glass bottles, or hardware.

Start with the floor, not with the fixture count

Retail store layout design begins with a measured plan of the usable floor area. Usable is the operative word. Gross square footage includes areas that cannot accept gondola shelving: door swings, electrical panels, service counters, required exits, columns, refrigeration clearances, stockroom doors, and accessible circulation routes.

The common error is to calculate the maximum number of 36- or 48-inch sections that can fit between two walls, then attempt to recover circulation space afterward. That sequence produces compressed aisles and irregular end conditions. A better sequence is fixed:

1. Mark all permanent obstructions and all required exit routes on the scaled plan.

2. Establish the main customer path and primary cross-aisles.

3. Reserve aisle widths before placing any gondola run.

4. Select single-sided wall rows or double-sided island rows according to location.

5. Divide remaining linear footage into starter-plus-adder runs.

6. Verify load class, anchor requirements, and access to the highest shelf positions.

Standard commercial gondola widths are commonly 36 inches and 48 inches. Center-aisle heights generally range from 48 to 84 inches. A 16-inch depth is a common baseline, although actual base decks and shelves must be evaluated as a set rather than treated as a single nominal dimension.

The selected layout changes what those dimensions accomplish.

Grid layouts are efficient because they convert floor area into long, repeated shelf runs. They also expose bad measurement immediately. A row that is 2 inches too long, or an aisle that is narrowed by a promotional stack, creates a cumulative circulation defect across the store.

Loop layouts place more responsibility on the main route. The perimeter path cannot become overflow storage for carts, baskets, seasonal displays, or replenishment pallets. Its width is not decorative space. It is the route that absorbs traffic when local aisles become congested.

A power aisle has a different function. It is a deliberate void in the shelving field. It carries customers across departments and supports promotional visibility. Eliminating it to add one more gondola run may increase nominal linear shelving footage while reducing actual category exposure and obstructing traffic.

Floor efficiency is not the maximum number of bays. It is the maximum number of bays that remain stable, accessible, and serviceable under operating traffic.

Calculate each run using starter-and-adder logic

A continuous gondola row requires one Starter section and then one or more Adder sections. This is not a sales convention. It is a support-column calculation.

A Starter has two uprights. It begins a freestanding run. An Adder has one upright and connects to the preceding section, sharing the existing upright at the joint. Therefore, a four-section 48-inch run is not four Starters. It is one 48-inch Starter plus three 48-inch Adders, producing an overall nominal run length of 192 inches before accounting for any manufacturer-specific end components or clearance allowances.

The correct purchasing logic is simple:

• One isolated row: one Starter.
• One continuous row of multiple bays: one Starter and the remaining bays as Adders.
• Two physically separated rows: each row requires its own Starter.
• A wall run: use a single-sided wall system with its specified base geometry and anchoring method.
• A central merchandising island: use double-sided gondola sections with T-shaped bases.

Single-sided gondola units use an L-shaped base. The profile allows the fixture to sit flush against a wall. Double-sided island gondolas use a T-shaped base because the unit must resist loading from both faces while standing independently in the center of the floor. These base structures are not casually convertible. Their welded or bolted geometry is designed for different load paths.

A commercial shelving configuration should also avoid arbitrary mixing of widths within a prominent run unless the plan requires it. A 48-inch grid interrupted by a 36-inch bay may solve a wall-length problem, but it introduces uneven shelf facings, different merchandising capacities, and more complicated label-strip alignment. There are cases where the interruption is justified: a column, a fire cabinet, a restricted clearance, or a measured wall segment that cannot accept another full bay. The point is to make that decision from the plan, not at the installation stage.

For a run of standard bays, use the bay width to establish the rack length, then hold clearance at both ends. Do not push uprights tight against columns, doors, or electrical equipment. Gondola installation requires access for assembly, leveling, inspection, and future reconfiguration. A row with no service clearance is a row that will be struck, scraped, and improperly modified.

Aisle width is a code issue before it is a merchandising issue

The minimum clear aisle width for accessibility is commonly stated in the 32- to 36-inch range in US and Canadian retail contexts. Main fire-egress aisles in many jurisdictions require at least 44 inches. Those figures are lower limits, not universal operating targets.

A 36-inch clear path may satisfy a narrow accessible route in a small store. It does not mean that a 36-inch supermarket aisle will function well when two carts, a replenishment cart, and a shopper stopped at a shelf occupy the same plane. High-traffic supermarkets, warehouse clubs, and stores moving large carts require substantially wider circulation. Some warehouse-style retail environments use aisles measured in many feet rather than inches, particularly where equipment movement is involved.

Clear width means clear width in operation. It is measured between the actual encroachments, not between the theoretical edges of two base decks. The following items commonly reduce an aisle after a plan has been approved:

• shelf overhangs and wire basket attachments;
• protruding endcap displays;
• promotional dump bins;
• cart corrals or hand-basket stands;
• open cooler doors;
• replenishment carts and temporary stock;
• price signage mounted beyond the nominal shelf face.

The field measurement must be taken after shelves, backs, label holders, and promotional components are installed. A base deck may be 16 inches deep while upper shelves project differently. A fixture plan that ignores the outermost installed component is incomplete.

Keep egress routes structurally clear

Exit routes require a separate review because they are often compromised by temporary merchandising. The permanent gondola layout may comply on opening day, then lose clearance through seasonal displays, pallet stacks, or endcap extensions.

This is an operational control problem as much as a planning problem. The store should identify which aisles are primary egress paths and prevent fixture creep into those zones. If a promotional display is allowed only by removing it at closing or during inspections, the layout is already unstable from a compliance standpoint.

Local building and fire requirements vary. The 44-inch figure is a useful general reference for primary egress in many jurisdictions, not a substitute for local approval. A floor plan should be reviewed against the applicable local code before fixtures are ordered, especially where occupancy, sprinkler coverage, accessible routes, or emergency exits constrain the room.

Steel gauge, upright thickness, and base anchoring determine whether the layout survives use

The visible shelf is only one part of the load-bearing system. Gondola loads travel from the shelf deck through brackets or hooks into the upright slots, then through the upright and base to the floor. Each connection has a limit. The limiting component may be the shelf, bracket, upright, base weld, fastener, or anchor point.

High-quality commercial gondola systems commonly use SPCC cold-rolled steel uprights in the 1.5 mm to 2.0 mm range, with electrostatic powder coating for corrosion and scratch resistance. SPCC is a cold-rolled steel specification used where controlled thickness, formed geometry, and surface finish are required. It is not a performance guarantee by itself. Upright section shape, slot pattern, base connection, reinforcement, and manufacturer testing all affect capacity.

Shelf ratings vary widely. Typical per-shelf capacities can range from approximately 50 lb to 500 lb depending on steel gauge, shelf depth, span, reinforcement, bracket design, and load distribution. That range is too broad to use as a design value. The applicable value is the rating assigned to the exact shelf and support combination being installed.

Dense product creates the most common planning error. A shelf loaded with lightweight boxed goods may occupy the same volume as canned food, beverages, batteries, fasteners, or glass containers, but the mass is not comparable. A rack plan based on volume rather than product density tends to overload lower and middle levels first, often with the heaviest cartons placed during replenishment rather than by the original merchandising plan.

Use these rules for load placement:

1. Put the highest mass on the base deck and lower shelf levels. This reduces overturning moment and concentrates the load where the system is designed to carry it most directly.

2. Do not treat shelf capacity as a row capacity. Every shelf level must remain within its own stated rating.

3. Distribute product across the shelf span. A concentrated load at the front edge or over a single bracket produces different stress than an evenly distributed load.

4. Keep heavy stock out of elevated shallow shelves unless the manufacturer specifically rates that configuration for the load.

5. Reassess ratings when changing shelf depth, adding baskets, fitting cantilever accessories, or replacing components with parts from another system.

A gondola does not become stronger because the product fits on it. Load rating follows steel section, span, bracket geometry, and distribution.

Leveling is not cosmetic

An unlevel floor changes the load path. A gondola base that is not uniformly supported can rock under service loads. The movement may appear small, but repeated cart contact and replenishment impact can loosen connections and increase tilt over time.

Installation begins with the slab, not the shelf. Check the floor across the entire run, not only at the first base. Use the manufacturer’s leveling provisions where supplied. Do not compensate for an uneven floor by forcing uprights into alignment with overtightened hardware or improvised packing that has not been approved for the fixture system.

Tall wall gondolas require secure attachment to studs or other solid structural backing as specified by the system manufacturer. Drywall alone is not a structural anchor. A wall run that appears stable when empty can develop forward movement once upper shelves are loaded or subjected to customer contact. Anchoring requirements are particularly relevant at taller heights, in seismic areas, near high-traffic zones, and where the fixture carries dense merchandise.

Center-floor double-sided gondolas depend on correct T-base assembly, full engagement of uprights, and an even floor bearing condition. Their stability comes from geometry and controlled loading, not from the assumption that product on both sides will somehow balance itself.

Use depth tapering to preserve sightlines without compromising the base

The standard 2-inch depth reduction from the base deck to upper shelves is functional. It improves product visibility and keeps upper shelf faces from forming a continuous vertical wall. On a gondola with a 16-inch base deck, upper shelves are commonly selected at approximately 14 inches deep.

This taper also has a structural logic. The deeper base deck carries bulkier and heavier goods lower in the center of gravity. Upper shelves carry smaller, lighter, or higher-margin items that benefit from visibility. The arrangement is not absolute; product weight still controls. A shallow upper shelf cannot be assigned a dense load simply because it is visually convenient.

A practical shelf-depth sequence for many general merchandise applications is:

• Base deck: deepest available deck in the selected system, typically used for bulk packs, reserve-facing product, or heavier cartons.
• Lower shelves: near-base depth where product mass remains significant.
• Mid shelves: reduced depth as product becomes lighter and hand reach becomes more important.
• Upper shelves: generally 2 inches shallower than the base, reserved for lighter packages and visually oriented facings.

Shelf pitch matters as much as depth. Excessive vertical spacing wastes cubic volume. Insufficient spacing forces product into unstable stacks or makes labels unreadable. The correct pitch follows package height, replenishment method, and hand clearance. It should be set using the actual product assortment, not a generic diagram.

Supermarket shelving placement often uses higher gondolas to maximize SKU count. That choice has a measurable tradeoff: taller fixtures reduce cross-store sightlines, create a larger overturning concern, and make top-level replenishment more dependent on safe access equipment. In smaller footprints, 48- to 60-inch units may offer a more manageable balance between capacity and visibility. In dense grocery or pharmacy grids, heights up to 84 inches can be appropriate when anchoring, loading, and aisle operation have been properly resolved.

Endcaps require the same scrutiny as the main run. They are frequently used for promotions, which means irregular loads, frequent resets, and contact from carts. A promotional endcap does not receive an exemption from shelf rating. If it is equipped with baskets, hooks, sign frames, or projecting accessories, measure the full projection into the cross-aisle and verify the component capacities independently.

Gondola rack installation steps that prevent avoidable defects

The assembly sequence should control geometry before merchandise is introduced. Installing shelves first and attempting to correct upright alignment later is inefficient and can conceal a base or connection defect.

1. Set out the row centerlines and base positions. Mark the plan on the finished floor. Confirm aisle dimensions from the actual base edges and projected shelf faces, not from a drawing alone.

2. Install the Starter section first. Assemble both uprights and the correct L-shaped or T-shaped base. Verify plumb, level, and base contact before extending the run.

3. Add Adder sections in the planned direction. Each Adder must fully connect to the preceding section at the shared upright. Maintain the selected bay width consistently; do not force an Adder into an undersized residual space.

4. Secure wall systems to approved structural backing. Locate studs or solid mounting surfaces as required. Use the manufacturer-specified anchors and fasteners. Do not substitute attachment to nonstructural finish materials.

5. Install backs, shelves, brackets, and base decks after the upright line is stable. Confirm that brackets seat fully in the slot pattern and that shelf decks are not twisted or resting on partial engagement.

6. Check every row for rocking and progressive deviation. A long run can begin square and drift out of alignment section by section. Recheck level and plumb along the full length.

7. Load from the bottom upward. Place the densest merchandise on lower levels. Inspect the rack after initial loading rather than assuming an empty-rack inspection is sufficient.

8. Document the rating and configuration. Record the supplier, model family, shelf depth, upright height, rated capacities, anchor method, and any nonstandard accessory. This prevents future resets from turning into unverified hybrid systems.

The final inspection should include aisle measurement with all installed components in place, full base contact, upright plumb, bracket engagement, anchor integrity where required, and load placement consistent with the available rating data. A loose shelf, a missing fastener, or a bowed upright is not a minor finish issue. It is evidence that the force path is no longer controlled.

The governing rule: choose the layout from mass and movement

Gondola shelving planning becomes reliable when each decision is tied to one of two variables: merchandise mass or customer movement.

Use 36- or 48-inch modular bays to create repeatable runs. Use one Starter per continuous row and Adders for the remaining sections. Reserve 32 to 36 inches only where an accessible clear route is actually appropriate, and maintain at least 44 inches for main egress where local requirements apply. Increase those widths where carts, high customer volume, or equipment demand it.

Use L-base single-sided units for wall lines and T-base double-sided units for central islands. Do not treat them as convertible formats. Select cold-rolled steel uprights with known thickness and manufacturer-rated components. Keep heavy product low. Taper upper shelf depth by approximately 2 inches from the base deck where visibility requires it. Anchor tall wall gondolas to real structure. Level every run before loading.

The rule is direct: if the floor carries dense stock, install the rack system for dense stock; if the floor carries traffic, leave it the width required for traffic. Every other retail layout decision is subordinate to those two facts.
