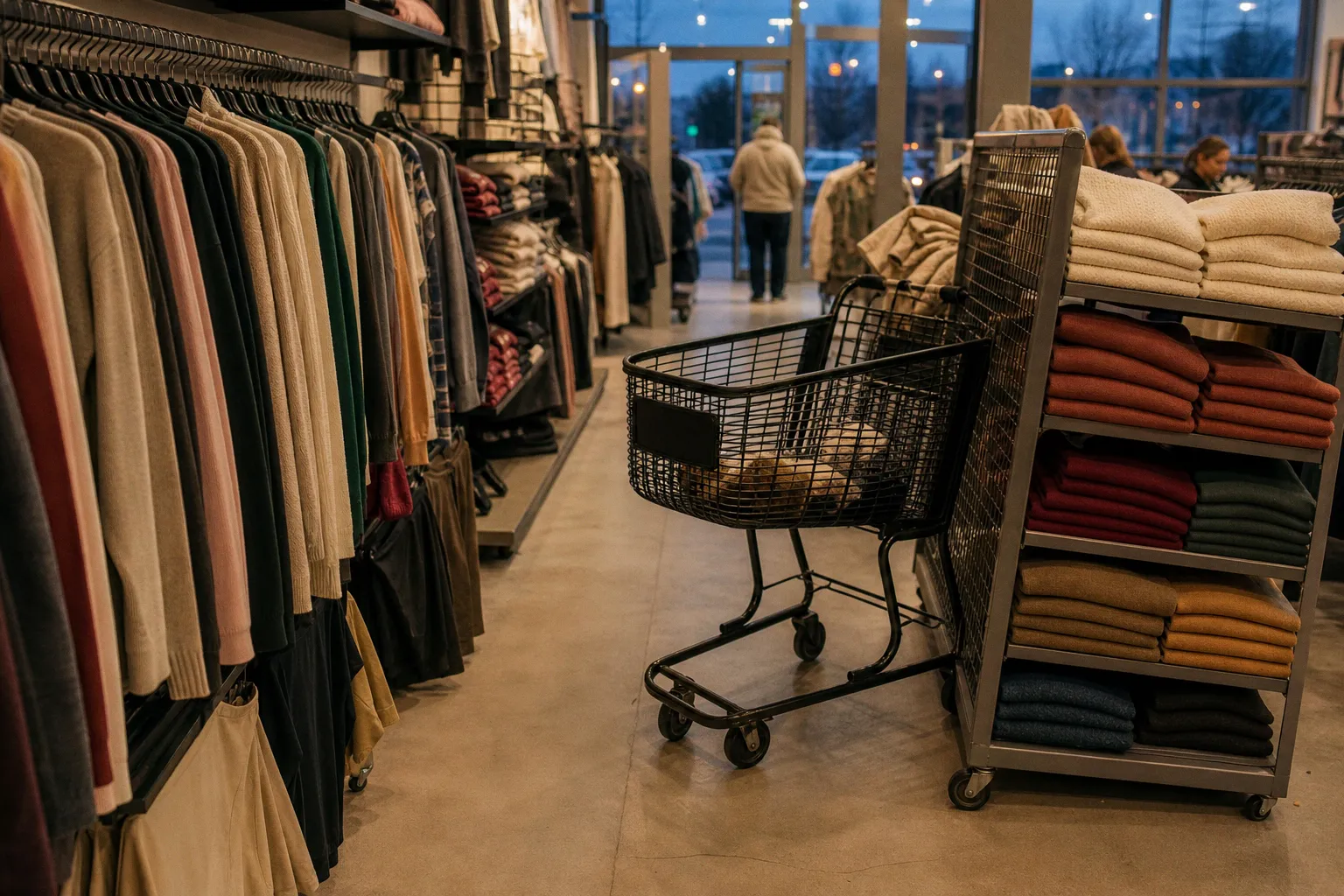

Display rack placement errors that drain retail profits

Rack placement is not the sole variable in that loss; stock availability, signage, lighting, and display maintenance are also involved. But rack placement determines whether a customer reaches the product, can stand beside it, and can remove it without interrupting traffic.

The failure mode is usually measurable. A 48-inch-wide gondola placed 12 inches too far into an aisle removes usable clearance along its full length. A promotional rack set inside the first 5 to 15 feet from the entry sits in a zone customers commonly traverse without processing merchandise. A 72-inch garment rack loaded above the average standing eye line converts selling area into overhead storage.

These are retail display rack placement mistakes, not styling disagreements. The floor plan is a load path for people. Merchandise density, rack footprint, turning radius, sightline obstruction, and fixture height determine whether that path remains functional.

A display rack produces revenue only after it permits approach, recognition, selection, and exit. Blocking any one stage turns inventory into floor resistance.

The $125 billion problem is not solved by adding more fixtures

Retail floor space is routinely treated as a fixed asset that must be filled. That assumption produces the most expensive of the visual merchandising layout pitfalls: adding display capacity after circulation has already been reduced below operational tolerance.

The GlobalData and One Door findings published in January 2025 reported that nearly half of consumers had left at least one store without making an intended purchase because of poor merchandising. A further 73.4% reported dissatisfaction with in-store visual merchandising. These figures cover more than rack geometry. They still establish a material point: customers do not separate fixture placement from the total retail environment. A blocked path, inaccessible size run, overloaded endcap, or obscured sign is experienced as one system failure.

For rack planning, the relevant unit is not the fixture’s nominal width. It is its occupied envelope.

A typical freestanding clothing rack may be 48 to 60 inches wide and 18 to 24 inches deep. Once garments are loaded, hanger shoulders, sleeves, and customer handling extend beyond the steel frame. A 24-inch-deep rack can functionally occupy 30 inches or more during active browsing. Two such racks placed face-to-face in a nominal 60-inch aisle do not leave a 60-inch aisle. They leave an intermittent, unstable channel that collapses whenever two customers browse simultaneously.

The same applies to gondolas. A double-sided gondola with 18-inch base shelves on each side can consume 36 inches before shoppers, baskets, product overhang, promotional wings, or price signage are considered. Fixture drawings often show clean rectangles. Stores operate with bodies, bags, carts, garments, and replenishment equipment.

The most common placement errors are structural in nature:

1. Using nominal aisle width instead of clear aisle width. Clear width is measured between the outermost usable obstructions. It is not measured frame-to-frame while apparel projects 6 inches into the path on both sides.

2. Treating endcaps as zero-cost additions. Endcaps alter the turning geometry at aisle intersections. A rack that performs in a straight run can create a choke point when placed at a corner.

3. Loading high-margin merchandise into low-visibility positions. A premium product behind a tall fixture, beyond a sharp turn, or above the normal visual field is physically present but commercially weak.

4. Pushing racks to the front door to signal abundance. This degrades the entry sequence and creates a store layout dead zone where promotional stock is passed rather than examined.

5. Filling every open patch of floor. Open floor is not unused floor. It is clearance capacity. It absorbs customer crossing movements, wheelchair turning, cart movement, fitting-room queues, and replenishment activity.

A rack layout should therefore be evaluated in plan view and at operating load. “Operating load” includes merchandise projection and shopper occupation, not only the fixture’s steel dimensions.

The decompression zone is not promotional real estate

The first 5 to 15 feet inside a store entrance is commonly described as the decompression zone. Customers entering from a parking area, mall corridor, or street are adjusting to light levels, temperature, security thresholds, flooring changes, and the store’s visual field. They are moving. They are not yet browsing with stable attention.

Placing a promotional rack immediately after the door is therefore a placement error with two consequences. First, merchandise receives low engagement because customers bypass it. Second, the rack narrows the entry path at the point where traffic direction is least settled.

A loaded fixture at the entrance also accumulates mechanical disorder quickly. Garments are disturbed by passing bodies. Sign holders are knocked out of alignment. A wheeled rack shifts if its casters are not locked or if the floor has a slope. The result is not merely poor presentation. It is a reduction in the clear corridor.

Promotional merchandise performs better when it is placed at the far end of the decompression zone, where it functions as a speed bump rather than a barrier. Research cited in the merchandising data indicates that this positioning can increase sales by at least 30% compared with placing the offer directly at the entrance.

The distinction is simple:

The rack selected for this area should have a controlled footprint. Low-profile tables, shallow 12- to 18-inch-deep display units, or narrow promotional frames generally impose less interference than a deep gondola or a dense four-way garment rack. The material specification matters as well. A light tubular rack with undersized casters and a high center of gravity is unsuitable for a high-impact threshold area. It migrates under incidental force. Once it moves, the clearance drawing is no longer valid.

For apparel stores, clothing rack positioning errors at the entrance often take the form of circular racks or four-way racks loaded to full capacity. Their nominal diameter is only part of the problem. The garment circumference expands under load, especially with outerwear, knitwear, and long dresses. The visual and physical diameter grows. An entry fixture must be dimensioned from the outermost garment surface, not from the chrome base.

Aisle width fails before it violates a code minimum

The butt-brush effect, a term associated with retail researcher Paco Underhill, describes the tendency for shoppers—especially women—to discontinue browsing when another person brushes or bumps them from behind in a confined aisle. It is a direct consequence of poor fixture spacing. The customer does not need to be trapped. Repeated contact or the expectation of contact is sufficient to shorten dwell time.

The legal minimum and the commercially functional minimum are not the same value.

ADA guidance requires a minimum clear aisle width of 36 inches for single wheelchair passage. Where a narrow route exceeds 200 feet, passing spaces measuring 60 by 60 inches are required at intervals no greater than 200 feet. These are access thresholds. They should not be mistaken for preferred widths in active retail browsing zones.

A 36-inch clear aisle can allow passage. It is generally insufficient for two shoppers browsing opposing racks, a customer with a basket passing a customer in a wheelchair, or a stroller turning around a garment rail. Main traffic aisles are typically planned at 4 to 6 feet. Secondary browsing aisles work more reliably at 3 to 4 feet, provided fixture depth and merchandise projection are controlled. Between individual display units, 30 to 36 inches can be adequate only where the space is not expected to carry continuous two-way flow.

The 36-inch minimum is an access floor, not a merchandising target.

The practical calculation begins with the rack’s functional depth. Consider two single-sided apparel racks with 18-inch steel bases. Once garments project 6 inches into the aisle from each side, the combined occupied depth is 48 inches. To maintain a 42-inch browsing aisle between them, the center-to-center spacing must account for 90 inches total occupied width. A layout set at 72 inches between frames would appear compliant on a drawing while producing a 24-inch or narrower functional gap under merchandise load.

This is why rack spacing should be checked at three conditions:

• Empty fixture condition: confirms construction geometry and anchoring locations.
• Fully loaded merchandise condition: captures garment projection, shelf overhang, and sign-holder intrusion.
• Occupied browsing condition: captures the customer’s body envelope and the interruption caused by another person passing behind.

The final condition is routinely omitted because it is harder to draw. It is the only condition that represents the sales floor during trading hours.

The problem becomes more severe around high-touch categories. Denim walls, folded knitwear bays, accessories, cosmetics, footwear displays, and clearance rails require customers to stop, lean, compare, and carry selected items. A 30-inch aisle can work beside a low-velocity stock wall. It fails beside a rack that requires lateral browsing for several minutes.

Main aisles should also be protected from fixture creep. Temporary dump bins, sale racks, mannequin bases, queue stanchions, and replenishment carts are often introduced after the original floor plan is approved. Each may remove only 6 to 12 inches. The cumulative effect is a corridor that no longer matches the approved plan.

Height is a visibility calculation, not a statement of capacity

The average standing eye level for retail browsing is approximately 60 to 66 inches from the floor. This is the primary buy level for high-margin, high-priority, or new merchandise. Items above 7 feet receive reduced engagement unless staff assistance, strong signage, or a deliberate vertical-display strategy compensates for the reach and visibility loss.

This does not mean every rack should terminate at 66 inches. It means the merchandise that requires recognition and hand access must occupy the correct vertical band.

A tall gondola, wall bay, or garment system can be structurally sound and still be commercially inefficient. The upper shelf may have adequate load capacity. Its brackets may be zinc-plated steel. Its uprights may support the distributed load without measurable deflection. None of that changes the customer’s viewing angle.

The error is using structural capacity as a reason to fill the upper zone with primary product.

For most general retail displays, the vertical hierarchy should be treated as follows:

The lower band cannot be ignored. ADA recommended reach ranges commonly run from 15 to 48 inches above the floor. Any rack system that places all shoppable product above that zone restricts access. Conversely, placing all profitable product near floor level wastes the strongest visual field.

Garment systems require a separate adjustment because hanging rails establish their own visual mass. A standard 66-inch rail carrying shirts may permit a visible top line and reasonable browsing. The same rail carrying long coats or dresses can place the usable hem and adjacent lower fixtures into conflict. A double-hang configuration increases linear capacity, but it often creates an unreadable lower rail. The lower product becomes physically present yet visually compressed behind the upper garments.

Material selection is relevant here. Tall fixtures with dense upper merchandising need a low center of gravity and sufficient resistance to racking. Light-gauge tubular steel frames can deform at welded joints or sway laterally when loaded asymmetrically. Powder-coated epoxy-polyester finishes resist ordinary abrasion better than untreated painted surfaces, but finish durability does not correct inadequate wall attachment, base width, or load distribution. A tall rack installed as a freestanding unit must be evaluated for tip risk under customer handling and replenishment, particularly where hooks, wings, or cantilevered arms are fitted.

In other words: do not solve an assortment problem by adding vertical steel.

Small stores need a circulation budget

For retail spaces below 1,500 square feet, the 60-40 rule is a useful planning constraint: approximately 60% of the floor is allocated to merchandise display and 40% to customer movement and circulation. It is not a statutory formula. It is a corrective against the standard small-store failure: treating circulation as residual space after every rack has been placed.

The ratio must be calculated using actual fixture footprints and movement zones. It cannot be established by dividing the room into broad colored blocks on a concept plan.

A 1,200-square-foot shop may allocate roughly 720 square feet to fixtures and merchandise zones and 480 square feet to circulation. But a four-way rack occupies more than its base. A customer browsing it creates a temporary exclusion zone. A fitting-room queue creates another. A cashwrap line changes the entire front-end path. The 40% circulation allowance must absorb these variable conditions.

The following sequence produces a more reliable retail display setup:

1. Fix the entry path first. Preserve the 5- to 15-foot decompression zone as movement space. Set the first promotional interruption beyond it, not inside it.

2. Draw main circulation routes at 48 to 72 inches clear. Use the upper end where carts, strollers, high traffic, or frequent cross-shopping are expected. Measure clear width after merchandise projection.

3. Place secondary browsing aisles at 36 to 48 inches clear. Do not use the 36-inch threshold as permission to place two active browsing categories opposite each other.

4. Install high fixtures only where they do not break sightlines. A 72-inch gondola can create a hard visual wall. Place it where category separation is intended, not where customers need to see the service counter, fitting rooms, or a primary destination.

5. Reserve turning and pause zones. Intersections, fitting-room approaches, payment queues, and category transitions require surplus area. This floor area is not vacant. It is operational tolerance.

6. Audit temporary merchandising separately. Seasonal racks, cardboard shippers, sale rails, and mannequin forms are responsible for many post-installation failures because they enter after the permanent layout has been measured.

The audit should be performed with a tape measure, not from memory. Measure from the widest point of the loaded display to the widest point of the opposing loaded display. Record the result. Then observe the aisle during a busy trading period. A fixture plan that works at 10:00 a.m. with two customers may fail at 1:00 p.m. with baskets, children, and replenishment activity.

Rack placement must balance conversion with fixture physics

Retail display setup mistakes are often described in aesthetic language: the store feels crowded, the assortment feels confusing, the path feels awkward. Those descriptions are correct but incomplete. The underlying problem is geometric.

Every rack adds mass, depth, visual opacity, and handling requirements. Every additional shelf creates an opportunity for product presentation and an obstruction to sightlines. Every taller upright increases vertical capacity and raises the consequences of poor anchoring or uneven loading. The objective is not maximum fixture count. It is maximum productive exposure per square foot without degrading movement.

A high-density layout can be commercially valid when the assortment is low-touch, the fixtures are shallow, replenishment is controlled, and circulation remains legible. It fails when dense garment rails, deep gondolas, oversized signage, and promotional add-ons are stacked into the same customer path.

The rule-based recommendation is direct:

• Use the entrance for orientation, not dense stock.
• Place promotional racks at the end of the 5- to 15-foot decompression zone.
• Maintain 4 to 6 feet in primary traffic routes and 3 to 4 feet in secondary browsing runs, measured at loaded condition.
• Treat 36 inches as a minimum accessibility condition, not the preferred width for active shopping.
• Put priority merchandise in the 60- to 66-inch eye-level band.
• Use upper rack capacity for controlled secondary display or reserve stock, not for the products expected to sell themselves.
• In small stores, protect approximately 40% of floor area for circulation before adding the last fixture.

A rack that carries more merchandise but prevents product contact is underperforming. The steel may hold its rated load. The floor plan does not.
