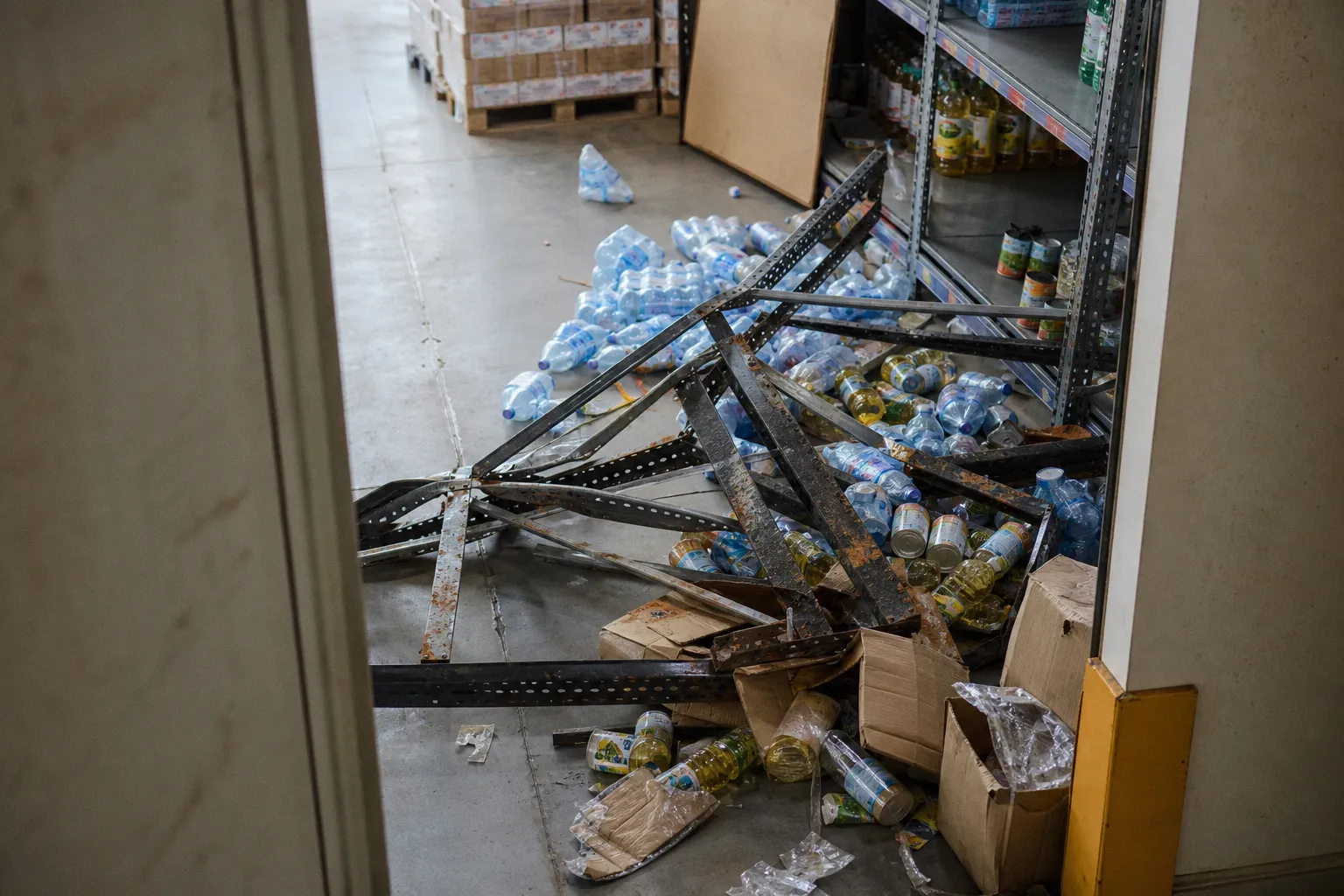

Promotional display stands: four costly sourcing mistakes

Most failures in promotional display stands begin before fabrication. The rack is ordered before the retail layout is frozen, the shelf depth is selected from a catalogue rather than from the product carton, and the quoted load capacity is accepted without defining whether it applies per shelf, per bay, or to the complete assembly. The result is not a merchandising problem. It is a dimensional, structural, and procurement problem.

A commercial display fixture must carry the specified load, preserve the required aisle, resist the store environment, and remain serviceable when the product assortment changes. A low purchase price does not compensate for blocked traffic, coating failure, overloaded shelves, or a production batch that reproduces an unverified design error.

1. Ordering the rack before fixing the floor plan

The first of the common promotional display stands buying mistakes is treating the fixture as an isolated object. It is not. A gondola, end cap, dump bin, or point of purchase display consumes a defined footprint and changes the path available to customers, staff, carts, and replenishment equipment.

Professional retail aisle width should remain above 1.2 m for smooth customer flow. That dimension is not a decorative planning preference. It is the residual clear width after accounting for the rack base, product overhang, promotional attachments, trolley movement, and any temporary stock placed beside the fixture.

A stand with a nominal footprint of 600 mm can consume more than 600 mm in operation. The base may project beyond the uprights. Cartons may overhang the shelf front. A side wing or sign frame may increase the effective width. If the fixture is placed near a gondola intersection, the obstruction affects turning clearance rather than only the straight aisle dimension.

The layout should therefore be frozen in plan view before the manufacturer receives the final order. At minimum, the plan must define:

• Overall fixture length, width, and height, including headers, side panels, hooks, and sign frames.
• Clear aisle width at the narrowest point, not the average aisle width.
• Distance from checkout zones, entrances, refrigeration units, columns, doors, and fire equipment.
• Replenishment access for staff and the turning path of carts or roll cages.
• Product-facing direction and the intended customer approach.
• The location of adjacent promotional stands during campaign periods.
• Whether the fixture must be removed, relocated, or reconfigured after the campaign.

Standard shelf lengths of 900 mm, 1000 mm, and 1200 mm are common in supermarket systems. They are not interchangeable in every store. A 1200 mm bay may reduce the number of uprights and connections, but it also increases the occupied run and can create a conflict at aisle ends. A 900 mm bay can fit a constrained plan more easily, but it may increase the number of frames, joints, and assembly operations required for the same linear capacity.

Shelf depth creates a second dimensional error. Standard supermarket shelves commonly fall within 300–400 mm, but the correct value depends on the product package. Bottled water, cooking oil, canned goods, and boxed promotional bundles impose different requirements on depth, front restraint, and access. A shelf that is too shallow produces front overhang and unstable stacking. A shelf that is too deep creates dead space behind the product and increases the bending moment on the shelf panel and brackets.

The calculation is straightforward:

Effective aisle width = available floor width − fixture footprint − product overhang − temporary stock intrusion

The critical value is the minimum result along the route. Measuring only the rack body produces a false clearance figure.

A display fixture does not occupy its steel outline. It occupies the full operating envelope created by its load, accessories, product overhang, and replenishment method.

Why the error becomes expensive

A layout conflict discovered before production can be corrected in a drawing. The same conflict discovered after installation can require shortened shelves, altered end panels, relocated signage, or a complete replacement of the base frame. Custom promotional display stands amplify this risk because the dimensions are often tied to printed graphics, folded panels, lighting, and packaging trays.

The procurement sequence should be reversed from the usual retail habit:

1. Freeze the store or campaign layout.

2. Record the actual product dimensions and carton quantities.

3. Define the clear aisle and replenishment constraints.

4. Select the fixture footprint and shelf geometry.

5. Produce a dimensioned drawing with tolerances.

6. Approve the prototype or sample.

7. Release the bulk order.

This sequence removes dimensional uncertainty before it is multiplied across a production run.

2. Selecting paint by appearance instead of coating thickness

Retail fixtures are exposed to repeated abrasion. Products are loaded, unloaded, dragged, stacked, and removed from the same shelf edges. Cleaning chemicals contact the finish. Metal carts strike the lower frame. Humidity enters through damaged edges and unsealed joints. A coating specification based only on colour or visual uniformity is incomplete.

Inferior racks may use thin spray paint below 60 μm. This layer can appear acceptable when new, but it provides limited tolerance against impact and abrasion. Qualified industrial shelves commonly use electrostatic powder coating in the 80–120 μm range. The process and film thickness provide a more defensible baseline for retail promotional stands durability, although coating thickness alone does not eliminate corrosion.

The metal substrate also matters. Zinc-plated components provide a different corrosion barrier from untreated mild steel. Powder-coated steel combines a steel substrate with an organic protective film. The performance depends on surface preparation, edge coverage, weld treatment, storage conditions, and the chemistry of the coating system. An epoxy-polyester powder system is commonly specified where a balance of adhesion and surface resistance is required, but the correct system still depends on the store environment and cleaning regime.

A sourcing specification should identify the following rather than stating “high-quality finish”:

• Base metal type and nominal thickness.
• Whether the component is zinc-plated, untreated, or powder-coated.
• Coating system, such as epoxy-polyester, where applicable.
• Target dry film thickness, with a specified range.
• Surface preparation before coating.
• Treatment of welds, cut edges, holes, and folded returns.
• Resistance requirements for abrasion, cleaning agents, and incidental impact.
• Inspection method and sampling rate for coating thickness.
• Repair procedure for damaged surfaces after installation.

The phrase “powder-coated” does not define the result by itself. Powder coating can be poorly applied. Excessive film thickness can produce weak edges, poor fit at connections, and chipping around punched holes. Insufficient thickness leaves the substrate exposed to mechanical damage. Contamination on the steel can reduce adhesion even when the measured film thickness is within range.

Corrosion is usually initiated at the detail

The broad face of a shelf panel is rarely the first location to fail. The first defect commonly appears at a cut edge, a weld, a fastener interface, or a point where two components rub during assembly. These areas require a separate inspection logic.

For indoor retail, the environmental load is lower than in an outdoor installation, but it is not zero. Food stores introduce moisture, cleaning chemicals, condensation, and spills. Fixtures near refrigerated cases can experience repeated wetting and drying. Lower shelves receive more impact and more contamination. Promotional stands placed near entrances are exposed to wet packaging and road salt carried on footwear during winter conditions.

A useful comparison is therefore not “paint versus powder coating.” It is a comparison of the entire corrosion system:

The table does not make one finish universal. Temporary corrugated displays, acrylic point of purchase units, and short-cycle campaign fixtures can be rational where the service interval is short and the load is low. A steel frame with controlled coating is more suitable where the same fixture will be assembled, replenished, cleaned, and relocated repeatedly.

3. Matching load capacity to the product, not to the catalogue photograph

Load capacity is frequently quoted as a single number. That number is incomplete without boundary conditions. A shelf rating must state whether the load is uniformly distributed, whether the shelf is supported at both ends, whether the bay is braced, and whether the capacity applies to one shelf or the complete upright assembly.

Uniformly distributed load produces a different stress pattern from a concentrated load. A row of canned goods applies a relatively continuous load. A dense stack of bottled water can concentrate force over a small section of the shelf. A pallet-sized promotional bundle may load the front edge and produce a larger bending moment than the same mass placed near the rear support.

For a simple shelf, the bending moment increases with load and span. The approximate relationship is:

M = wL² / 8

where M is the maximum bending moment for a uniformly distributed load, w is load per unit length, and L is the supported span. The squared span term is the relevant point. Increasing shelf length without changing material thickness or support spacing can reduce structural margin rapidly.

This is why standard 900 mm, 1000 mm, and 1200 mm shelves must not be treated as equivalent merely because they share the same nominal system. A 1200 mm shelf may require a thicker panel, a formed front lip, an additional bracket, or a lower allowable load than a shorter shelf made from the same gauge.

The product category determines the correct structural request. Lightweight impulse products, packaged snacks, and small accessories rarely challenge the rack in the same way as:

• Bottled water and other high-density liquids.
• Cooking oil and detergent containers.
• Canned food packed in dense rows.
• Promotional multipacks.
• Bulk cartons stored temporarily on lower shelves.
• Metal tools, hardware, or other compact products with high mass per unit volume.

The supplier should receive a product loading schedule rather than a general statement such as “heavy-duty retail rack.” The schedule should show product mass, package dimensions, units per shelf, number of shelves, expected concentration, and whether staff will place full cartons directly onto the rack.

Four load values that must not be confused

1. Shelf capacity is the allowable load on one shelf under a stated distribution and support condition.

2. Bay capacity is the allowable load across the complete upright assembly, including the number and position of shelves.

3. Base capacity concerns the floor contact, leveling feet, and local pressure on the retail floor.

4. Connection capacity concerns brackets, hooks, bolts, slots, welds, and the upright perforations that transfer force through the assembly.

A shelf can pass its panel calculation while the connection fails. An upright can carry the vertical force while the base plate introduces excessive local pressure. A rack can remain standing under static loading but deform when a loaded trolley strikes the lower frame.

The specification should define a safety margin and the loading method. It should also prohibit unsupported assumptions. “Capacity per shelf” is not a complete engineering statement unless the value includes shelf span, shelf depth, load distribution, deflection limit, and test condition.

The correct load rating is the lowest verified capacity in the load path. The shelf panel is only one component in that path.

Deflection requires separate attention. A shelf may not collapse under the stated load, yet excessive deflection can cause products to roll forward, doors or drawers to bind, and front retaining lips to disengage. In retail, serviceability is part of structural performance. A fixture that remains upright but no longer presents or retains the product has failed its operating function.

4. Releasing a custom order without prototype verification

Skipping a prototype is not a minor administrative shortcut. It removes the last opportunity to identify dimensional, assembly, and merchandising errors before they are repeated through the full batch.

Custom store fixtures often combine several interfaces:

• Steel uprights and shelves.
• Hooks, brackets, trays, and price rails.
• Printed boards or graphic panels.
• Acrylic, wire, corrugated, or sheet-metal components.
• Fasteners and knock-down connections.
• Lighting, cable routes, or electronic accessories.
• Packaging intended for transport and installation.

Each interface can introduce a tolerance conflict. A shelf may fit the upright but interfere with the price rail. A graphic header may obscure the top product row. A hook pitch may not match the package perforation. A folded panel may prevent the rack from sitting flush against an adjacent bay. A powder coating build-up may make a previously acceptable slot connection too tight.

The prototype should be tested as an operating fixture, not displayed as a sample object. The test should include:

1. Full assembly using the intended fasteners and tools.

2. Measurement of external dimensions and clearances.

3. Installation of the actual product packaging.

4. Loading at the intended shelf distribution.

5. Inspection of shelf deflection and connection movement.

6. Removal and replacement of products by staff.

7. Installation of graphics, hooks, trays, and accessories.

8. Verification of aisle clearance in the planned location.

9. Disassembly and repacking if the stand will be relocated.

10. Inspection of coating damage at assembly points.

The prototype is also where packaging logistics become visible. A fixture that performs correctly in the store can still create high correction costs if it arrives with bent shelves, unprotected corners, or a packing method that mixes similar components. The manufacturer should provide an identification system for uprights, brackets, shelf sizes, and fastener packs. Unmarked components increase installation time and create avoidable assembly errors.

A written approval should record the dimensions, materials, finish, load conditions, graphics, and approved deviations. Verbal acceptance is insufficient for a custom batch. The approved sample becomes the reference condition for production inspection.

The unknown cost of a prototype is not a reason to omit one. The correction cost of a failed batch includes redesign, rework, storage, freight, installation labour, disposal, and campaign delay. Those cost categories are predictable even when the exact prototype price varies by manufacturer and construction.

5. Choosing fixed construction when the product cycle is variable

A fixed display is efficient only when the merchandise, campaign period, and store footprint remain stable. Retail rarely provides all three conditions for long. Product packaging changes. Promotional volumes fluctuate. Seasonal stock replaces the original assortment. A fixture that was dimensioned for one campaign becomes a constraint during the next.

Modularity transfers adjustment from fabrication to assembly. Adjustable shelf levels, slotted uprights, interchangeable brackets, removable headers, and replaceable panels allow one frame to support multiple product configurations. The added connection points must be engineered correctly. Modularity is not achieved by drilling random holes into a thin section and calling the result flexible.

The trade-off should be evaluated against the operating cycle:

The structural risk in modular systems is the reduction of effective section or support engagement at adjustable positions. A shelf bracket inserted into a slotted upright must have adequate bearing length and positive retention. Hooks must not disengage under forward loading. The slot geometry must not enlarge through repeated impact. Fasteners must resist loosening under vibration and routine handling.

A fixed rack can therefore be the correct choice for a narrow, stable application. A modular rack is the stronger procurement decision where the fixture will move across stores, serve several campaigns, or carry products with changing dimensions. The decision should follow the service cycle, not the initial quotation.

Material must match campaign duration

Short-cycle events do not always justify permanent steel fixtures. Corrugated displays can reduce transport mass and support rapid graphic changes. Acrylic can provide controlled visibility for lightweight products. Wire components can reduce material use for hooks and baskets. Powder-coated steel is justified where the stand must withstand repeated loading, cleaning, relocation, and longer service.

The error is not selecting a light material. The error is using a material outside its mechanical and environmental envelope.

A material decision should therefore record:

• Campaign duration.
• Number of assembly and disassembly cycles.
• Product mass and centre of gravity.
• Exposure to moisture and cleaning agents.
• Required graphic replacement frequency.
• Transport and storage conditions.
• Probability of impact from carts or handling equipment.
• Required residual value after the first campaign.

This prevents a temporary display from being over-engineered and a permanent fixture from being under-specified.

The procurement route that avoids most failures

The four principal sourcing mistakes—ignoring traffic flow, accepting inadequate coating, misjudging load capacity, and skipping prototype verification—are connected by one procurement failure: the fixture is specified as a visual object rather than as a loaded system operating inside a constrained floor plan.

The practical route is narrow:

• Dimension the real product, carton, and replenishment load.
• Reserve a minimum clear aisle of more than 1.2 m where smooth retail flow is required.
• Select shelf lengths and depths from the layout and package geometry, not catalogue defaults.
• Specify steel gauge, coating chemistry, and target film thickness.
• Define capacity by shelf, bay, connection, and base condition.
• State whether loads are uniform, concentrated, or carton-based.
• Approve a functional prototype before bulk production.
• Choose fixed or modular construction according to the campaign and relocation cycle.
• Inspect interfaces, not only broad surfaces: welds, edges, slots, brackets, and fasteners.
• Record the approved configuration so production can be checked against a physical reference.

A supplier quotation that omits these points is not a complete technical proposal. It is a price for an undefined assembly.

Final rule

For light products and short campaigns, corrugated, acrylic, or wire promotional units can be technically rational. For repeated retail use, powder-coated steel provides a stronger service basis when the substrate, gauge, connections, and coating thickness are specified rather than assumed. For dense products such as bottled water, cooking oil, and canned goods, the load case must control the shelf span, section, bracket, and upright design.

The definitive recommendation is rule-based: fix the floor plan before fixing the rack; size the structure from the heaviest real product load; specify the coating by material and film thickness; and release no custom production batch without a verified sample. Retail display systems fail at interfaces and assumptions. Remove those assumptions before the steel reaches the store.
