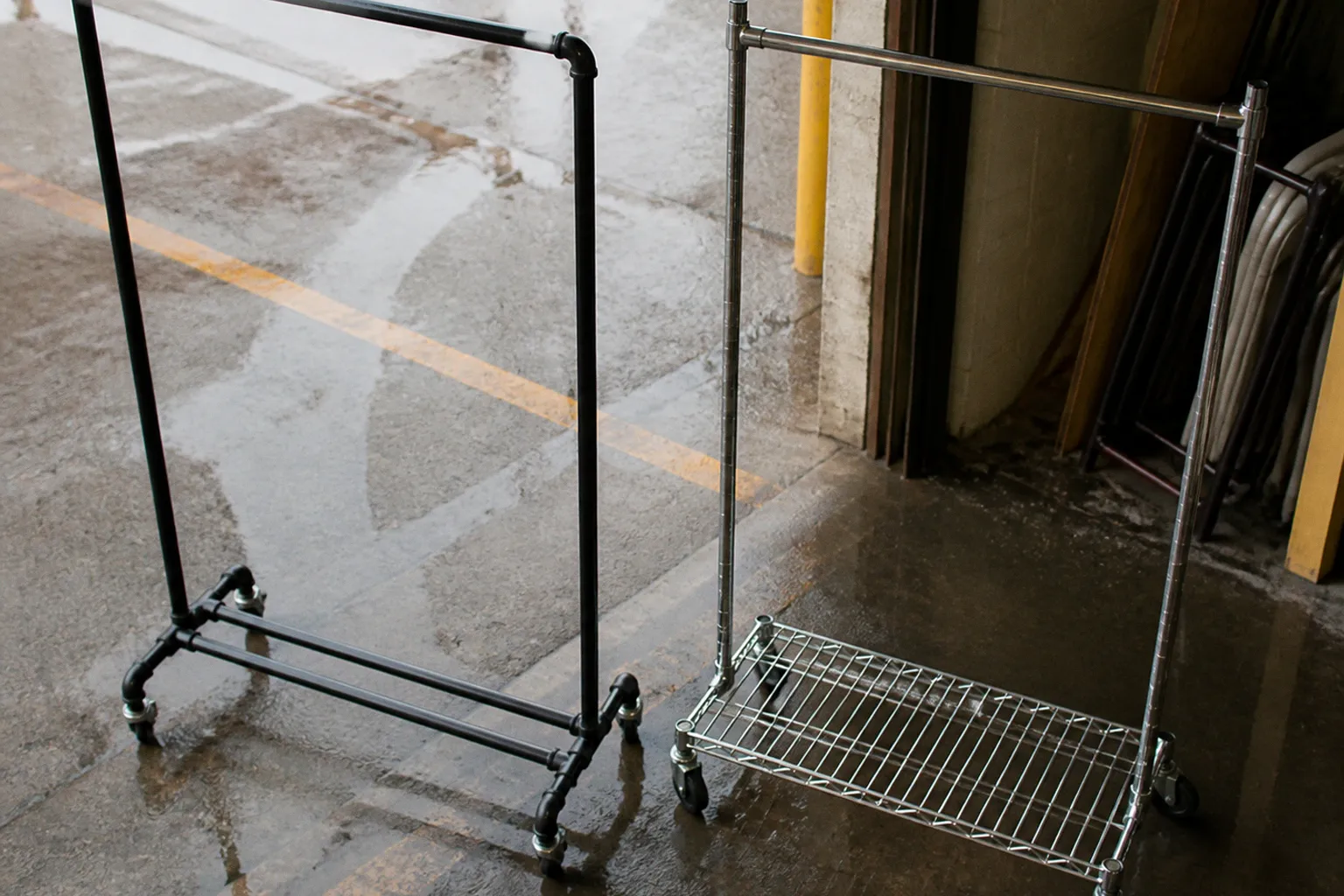

Pipe Racks vs Wire Garment Racks: Stockroom Storage

Heavy garments sagging a hanging rail, cartons blocking the lower tier, wire shelves filled so deeply that the back row disappears, and rolling racks parked wherever there is an open patch of floor all create the same commercial problem: slower replenishment and less reliable stock visibility.

That is where the choice between industrial pipe racks and wire garment racks becomes operational rather than cosmetic. Both systems can support commercial clothing storage, but they organize weight, access, airflow, and future changes in very different ways. If you are comparing industrial pipe racks vs wire garment racks for a retail stockroom, start with the way your inventory moves—not with the finish, the catalogue photograph, or the promise of “heavy duty.”

The right rack is the one that protects sightlines, keeps SKUs findable, supports the actual garment mix, and allows the team to replenish the sales floor without turning every stock pull into a small recovery project.

First, define what each rack is doing

“Pipe rack” usually refers to a garment-hanging structure built from steel pipe or tube, with vertical posts, horizontal rails, and sometimes multiple levels or casters. It is primarily a hanging-storage system. Coats, dresses, trousers, uniforms, and other garments that arrive on hangers remain on hangers, so the rack preserves the product’s presentation and keeps the stockroom close to the way the merchandise appears on the floor.

“Wire garment rack” can describe two different commercial configurations:

• A wire rack with hanging bars, used mainly for suspended apparel.
• A wire shelving unit with shelves and one or more hanging rails, used for folded goods, accessories, cartons, and hanging garments in the same footprint.

That distinction matters. A wire shelving garment rack with adjustable shelves is not competing with a simple pipe rail on exactly equal terms. It is a hybrid storage tool, while the pipe rack is often a more focused solution for hanging inventory.

For a fair comparison, assess the systems by five questions:

1. What percentage of the inventory must stay on hangers?

2. Are cartons, folded garments, or accessories stored in the same bay?

3. How often does the layout change during a season?

4. Does the team need maximum visibility from the aisle, or maximum item density?

5. Will the rack be moved, expanded, or reconfigured without specialist labor?

Those answers will usually point us toward the better system before we discuss finishes or accessories.

The most useful garment rack is not the one with the highest advertised capacity; it is the one that lets an associate locate, pull, and replenish a SKU without creating a second task.

Structural integrity and load-bearing dynamics

Industrial pipe racks tend to win when the load is concentrated on a hanging rail. A steel tube or pipe frame transfers the weight through the rail into the uprights and then into the floor. That is a straightforward load path, but it does not make every pipe rack equally robust. Rail diameter, wall thickness, span, joint design, bracing, base geometry, caster quality, and the distribution of garments all affect real-world performance.

A long rail loaded with dense outerwear behaves differently from the same rail carrying lightweight shirts. The issue is not only total weight. It is also leverage: garments are pulled from one section, pushed into another, and sometimes left hanging beyond the nominal center of the bay. If the frame is lightly braced, repeated side loading can create wobble even when the static load appears acceptable.

Wire garment racks distribute loads differently. Wire shelves spread folded merchandise over a larger surface, and the open grid can be reinforced with shelf supports, posts, and cross-bracing. In a shelving configuration, this makes the system useful for mixed inventory. You can place boxed accessories or folded denim on one level, hanging tops below or beside them, and smaller replenishment stock in bins.

However, wire shelving is vulnerable to a familiar operational mistake: treating every shelf as a flat storage surface regardless of what is placed on it. A shelf rated for evenly distributed weight may perform poorly when a concentrated carton, metal bin, or overfilled tote sits in the middle. The shelf may bow, the clips may loosen, or the entire bay may become less stable when the weight is loaded high.

What to compare in the specification sheet

When reviewing commercial clothing storage systems, look beyond a single “capacity” number. Ask the supplier to identify:

• Capacity per hanging rail, not just total rack capacity.
• Capacity per shelf and whether the rating assumes evenly distributed weight.
• Maximum recommended rail span without an intermediate support.
• Whether the rack is intended for static storage, mobile use, or both.
• Caster diameter, locking arrangement, and rated capacity on rolling models.
• Bracing requirements for tall or narrow units.
• The type of connection used at each joint and whether replacement parts are available.
• Whether the stated capacity applies to the complete assembled configuration.

A pipe rack is usually the safer starting point for dense hanging stock when the frame is properly braced and the rail span matches the garment load. A wire shelving unit is often the more versatile choice when the load is mixed and the stockroom team needs several storage modes in one bay.

Do not confuse “industrial” with “indestructible.” A heavy-duty clothes rack with a narrow base can still be unstable if staff load the upper rail with bulky garments and use the lower area as a dumping zone. The floor footprint and center of gravity are part of the capacity conversation.

Airflow, visibility, and inventory management

The difference between pipe and wire becomes obvious when the stockroom is busy. Pipe racks provide clean visual access to hanging garments. Associates can scan a rail, read size markers, and move directly to the relevant style group. For apparel that is organized by department, brand, size, or replenishment priority, this can reduce search time and unnecessary handling.

The limitation is that hanging rails can create dense visual bands. When too many garments occupy one rail, the front of the rack becomes easy to read while the rear becomes operationally invisible. Staff may see that a style exists without being able to confirm its size run quickly. The result is familiar: garments are pushed aside, hangers interlock, and the rail becomes harder to work as the day progresses.

Wire racks improve visibility in a different way. The open mesh allows light and air to pass through shelves, which helps prevent the heavy visual blocking associated with solid panels. The team can often see more of the neighboring bay and identify empty locations faster. Wire shelving also accommodates labeled bins and carton positions without closing off the entire rack face.

But open wire does not automatically produce better inventory control. If folded garments are stacked too high, or if cartons are placed across multiple shelf positions, the open grid disappears behind the stock. Wire shelving works best when each shelf has a defined product role and a controlled depth. Otherwise, it becomes a collection of shallow horizontal surfaces where stock is technically visible but practically difficult to count.

For a retail stockroom, we should treat visibility as a replenishment metric, not merely a design preference. Ask:

• Can an associate identify the department from the aisle?
• Are size runs arranged in a repeatable direction?
• Can the team see an empty slot before the sales floor calls for replenishment?
• Does the rack encourage one-SKU-per-position discipline, or does it invite mixed piles?
• Is the bottom tier usable, or does it become dead storage because it is too dark, low, or difficult to access?

Pipe racks are particularly effective for hanging-only departments with clear rail zoning. Wire shelving garment racks perform well where the inventory mix changes between hanging, folded, and boxed product.

A practical comparison

Modularity and reconfiguration in high-volume environments

Retail stockrooms rarely remain static. One season brings padded jackets and long coats; the next shifts toward lightweight tops and promotional accessories. A system that is efficient in October may create wasted volume in March. This is where modularity has direct commercial value.

Pipe racks can be reconfigured when the frame uses adjustable rails, bolt-together components, or compatible add-on sections. You may be able to increase hanging capacity, add a lower rail, create a two-tier arrangement, or connect additional bays. The advantage is a clean hanging layout that remains visually consistent across the stockroom.

The catch is that pipe systems are often less forgiving when your storage needs move away from hanging inventory. Adding another rail is easy only if the underlying frame was designed for it. Converting a dedicated garment rack into a reliable shelving system may require different components, not just a quick adjustment.

Wire shelving is generally more flexible for mixed storage. Shelves can often be moved vertically, removed, or added, and the system can accept dividers, bins, shelf liners, hanging bars, and label holders. That flexibility is valuable when SKU profiles change frequently or when one stockroom supports several departments with different handling patterns.

There is also a psychological advantage. A modular wire system makes it easier to give every category a defined home because the shelf positions can follow the inventory rather than forcing the inventory into fixed levels. If accessories grow, you can create more small-item positions. If folded apparel decreases, the shelves can be opened up for cartons or replenishment totes.

Reconfigure around the movement of stock

Use a pipe-first layout when:

1. Most garments arrive and leave on hangers.

2. The sales floor is replenished by style and size from dedicated rails.

3. The stockroom team benefits from fast visual scanning.

4. The product is bulky, long, or easily damaged by folding.

5. The rack will stay in a stable department zone for most of the year.

Use a wire-first or hybrid layout when:

1. The inventory includes folded garments and boxed stock.

2. Accessories, footwear, or packaging materials share the same room.

3. Seasonal assortment changes are frequent.

4. The business needs adjustable shelf heights and bin locations.

5. The stockroom must support several departments without installing separate systems for each one.

A hybrid approach is often commercially stronger than forcing one rack type across the entire room. Pipe bays can handle hanging apparel, while wire shelving controls folded product, accessories, and reserve cartons. The key is to assign each system a clear job. A hybrid stockroom becomes inefficient only when the two systems overlap without a zoning logic.

Installation complexity and floor space optimization

The rack footprint is only the beginning. We need to account for the working aisle, door swings, emergency access, picking space, and the clearance required to remove garments without striking adjacent stock.

Pipe garment racks are typically straightforward to install, especially in bolt-together or modular formats. Their geometry is easy to understand: uprights, rails, supports, and possibly casters. A fixed pipe rack can make efficient use of a narrow wall run, while a rolling garment rack can support temporary staging near the receiving area or fitting-room replenishment zone.

Rolling models require more discipline. A rack that moves easily when empty may become awkward once loaded with dense garments. Casters must be locked during picking, and the aisle must remain clear enough for the rack to be moved without clipping door frames, fixtures, or neighboring bays. Mobile storage is useful when it reduces handling; it is not useful if the team simply relocates congestion from one part of the stockroom to another.

Wire shelving often requires more attention during assembly because shelf levels, post positions, braces, and accessories determine the final usability of the bay. The installation is not necessarily difficult, but careless leveling can produce shelves that look aligned while transferring weight unevenly. If the unit is tall, narrow, heavily loaded, or positioned where staff will push against it, anchoring or stabilization may be appropriate according to the manufacturer’s instructions and local requirements.

Floor planning that protects throughput

Before placing either system, map the stockroom around the work sequence:

• Receiving zone: where cartons and new deliveries are opened.
• Processing zone: where garments are sorted, tagged, steamed, or rehung.
• Reserve storage: the racks holding inventory that is not immediately moving to the floor.
• Replenishment route: the path from stockroom to sales floor or dispatch point.
• Exception zone: damaged, returned, transferred, or unprocessed merchandise.

Do not allow the most flexible rack to become the default location for every exception. A rolling pipe rack parked in the central aisle may appear temporary, but temporary fixtures have a habit of becoming permanent dead zones. Likewise, a wire shelf with no assigned category will gradually collect mismatched cartons until its SKU density becomes high and its retrieval speed collapses.

For tight rooms, orientation matters. Hanging racks parallel to the main travel path can support fast garment access, but only if the rail ends do not project into the aisle. Wire shelving may use vertical volume more effectively, yet deep shelves can create a reach problem if the back half is routinely ignored. The best layout is not the one with the greatest nominal storage capacity; it is the one that preserves usable pick faces.

High SKU density is not a win if the extra inventory sits beyond the associate’s normal reach and becomes invisible during replenishment.

Maintenance cycles for industrial storage systems

Maintenance on garment racks is usually predictable, but it must be tied to how the store operates. The most common failures do not begin as dramatic structural events. They begin as loose fittings, bent shelf clips, damaged casters, overloaded rails, or a rack that no longer sits squarely on the floor.

For industrial pipe racks, inspect:

• Rail joints for movement, deformation, or visible cracking.
• Uprights and base plates for bending or impact damage.
• Casters for seized wheels, loose fasteners, and ineffective brakes.
• Hanger clearance at rail ends, where garments can snag or fall.
• Signs that staff are using the top of the frame as a shelf.
• Any change in stability after the rack is moved or reloaded.

For wire shelving garment racks, inspect:

• Shelf clips or locking collars at every adjusted level.
• Bent wire caused by concentrated loads or impact from carts.
• Posts that are no longer vertical.
• Bracing and back supports, particularly on tall units.
• Shelf liners, if used, for warping or unsupported edges.
• Casters and leveling feet after relocation.
• Labels and dividers, because poor identification often leads to unsafe overloading.

The maintenance cycle should also include a fast operational reset. Are garments still grouped by the original planogram logic? Are the lower shelves holding assigned stock, or have they become a dumping point? Are the rails packed so tightly that associates pull three styles when they need one? Is the rolling rack being used for active replenishment, or has it become a parking fixture?

These checks connect physical condition with commercial performance. A rack can be structurally sound and still fail the stockroom if it slows picking, hides size runs, or forces staff to handle the same garment repeatedly.

Which system fits your stockroom?

The answer depends on the dominant inventory pattern, but the decision becomes clearer when we separate primary storage from support storage.

Choose industrial pipe racks when hanging inventory drives the operation

Pipe racks are the stronger choice for a stockroom built around hanging garments. They support fast visual scanning, preserve garment condition, and make it easier to organize by department, style, size, or replenishment priority. They are especially effective for long garments and bulky product that loses time or presentation quality when folded.

Select a frame with enough base stability for the intended rail load, and do not maximize the span simply because the rail physically fits the bay. A shorter, better-supported rail can outperform a longer rail that is technically usable but difficult to search.

Choose wire garment racks when the stockroom must absorb variety

Wire systems make more sense when the inventory is mixed. Folded apparel, accessories, boxed goods, and hanging garments can share a controlled storage zone, with shelf levels adjusted to the product rather than fixed by one garment category. Open construction supports visibility and airflow, while accessories such as dividers and bins can improve SKU separation.

The trade-off is that wire shelving rewards disciplined replenishment more than improvisation. Without clear shelf ownership and load distribution, its flexibility becomes clutter.

Choose a hybrid layout when the merchandise mix changes by department

In many stores, the most practical arrangement is not pipe versus wire across the entire stockroom. Use pipe bays for hanging reserve inventory and wire units for folded goods, accessories, and cartons. Keep the systems visually and operationally zoned so that an associate can predict where a product belongs before opening a search.

A hybrid layout also gives you a better path through seasonal transitions. The pipe area can absorb a coat-heavy assortment while wire shelving carries smaller accessories and packaging. When the assortment changes, shelf levels and rail assignments can change independently instead of forcing a complete stockroom reset.

The KPI that should settle the decision

The final test is not whether the rack looks industrial. It is whether the system improves the movement of inventory.

Track a small set of practical measures after installation:

• Time required to locate a requested SKU.
• Time from delivery processing to stockroom availability.
• Replenishment trips completed during a peak trading period.
• Number of garments handled before the correct size or style is found.
• Frequency of rail overloading, shelf mixing, or temporary floor storage.
• Number of damaged or misplaced units attributed to storage.
• Percentage of stockroom floor kept clear for the intended travel route.

If pipe racks produce faster hanging-garment retrieval but wire shelves reduce carton congestion, the answer may be a zone-by-zone allocation rather than a single winner. If both systems perform similarly, choose the one that gives you better reconfiguration options and a clearer maintenance path.

Before opening, walk the route as an associate would: enter with a carton, process the garment, locate the reserve position, pull a size run, and move the stock toward the sales floor. If the route requires backtracking, reaching over unstable loads, or searching through mixed rails, the rack specification is not the real problem—the layout is.

For most hanging-focused apparel stockrooms, properly braced industrial pipe racks provide the cleanest access and the strongest alignment with replenishment work. For mixed merchandise and changing SKU profiles, wire garment racks offer greater modularity and better use of shelf-based storage. The commercially sound choice is the one that matches the physical form of the inventory while keeping the next action obvious to the person working the floor.
