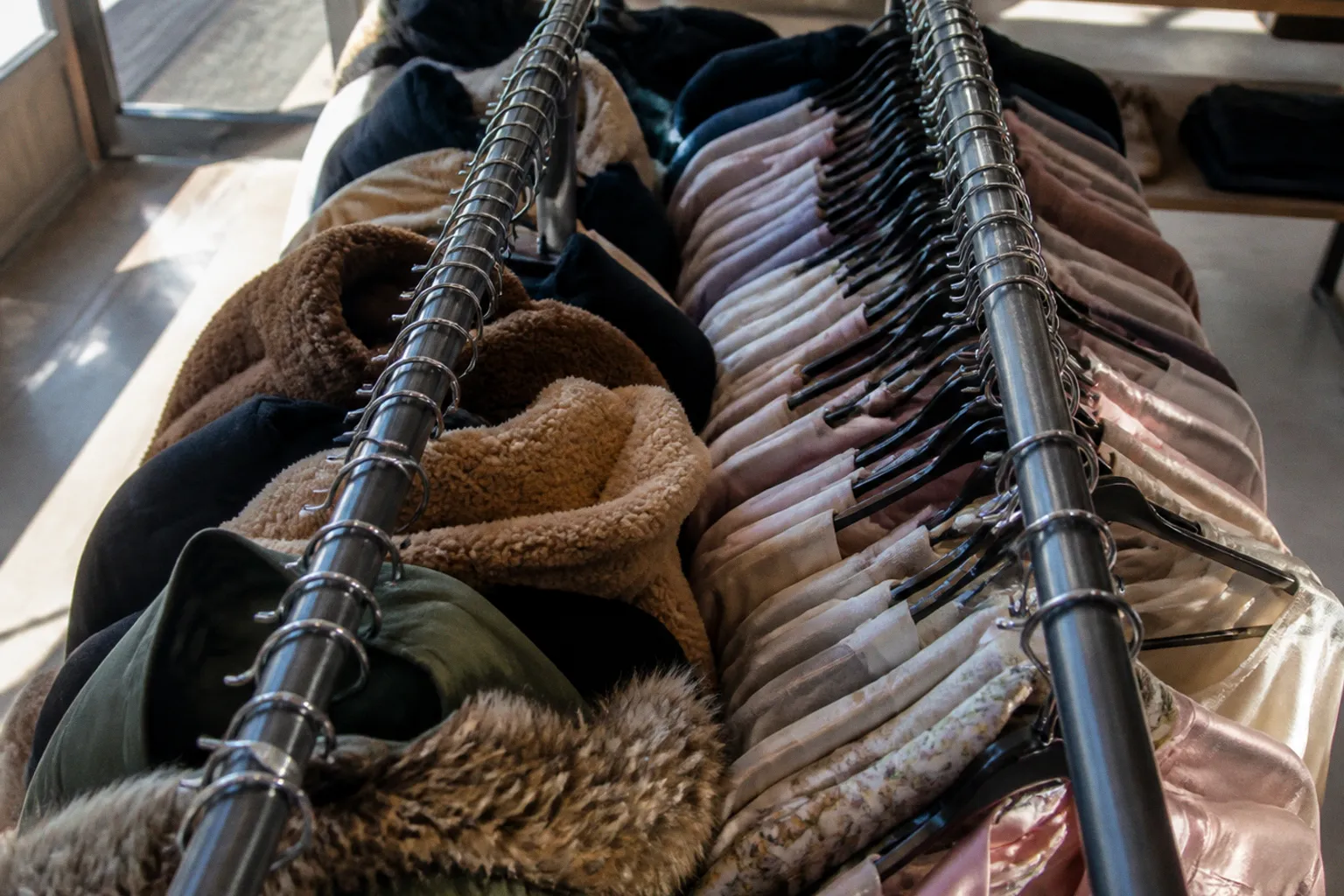

Double rail clothing racks: spacing traps that ruin garments

A rack can carry its nominal load and still damage garments if the vertical clearance, hanger density, or unsupported rod span is wrong.

The primary spacing rule is direct: a double-hang configuration requires at least 36 inches, or approximately 91 cm, of vertical space from one rod to the next. That dimension is intended for short-hang garments such as shirts, jackets, and folded slacks. It is not a universal clearance for every apparel category. Dresses, coats, and other long-hang garments require a separate height zone of at least 150–170 cm.

Double rail clothing rack spacing problems usually begin when a rack is selected by its footprint alone. The frame fits the room. The rails fit the frame. The garments do not fit the available volume.

The 36-inch vertical clearance rule

A double rail rack divides one hanging bay into two short-hang levels. The lower rod is not simply an additional storage surface. It reduces the available vertical envelope, changes the load path, and creates a second zone in which garments can overlap.

A minimum rod-to-rod clearance of 36 inches allows short garments to hang without the lower hems occupying the same volume as the garments on the lower rail. Less clearance creates several failure modes:

• Shirts and jackets on the upper rail descend into the hanger zone below.
• Folded slacks contact the lower garments rather than remaining suspended.
• The lower rail becomes inaccessible when the upper row is loaded.
• Hangers rotate under pressure and force adjacent garments into the frame.
• Sleeves and hems catch on the lower rod during removal.
• Fabric is compressed between hangers instead of hanging under its own weight.

The 36-inch dimension must be measured vertically between the usable hanging levels. Measuring from the floor to the lower rod, or from the top of the frame to the upper rod, does not establish adequate rod-to-rod clearance. The actual distance between the two load-bearing rods is the controlling dimension.

A rack with adjustable rails can create a second problem. Its adjustment holes may allow a nominal 36-inch setting, but the usable clearance can be lower after accounting for the rod diameter, hanger hook geometry, base plates, and any lower cross-bracing. A technical specification should therefore identify whether the dimension refers to clear garment space or centerline-to-centerline rod spacing.

A double rail rack is correctly dimensioned only when the garment envelope, not the steel frame, has 36 inches of usable vertical clearance.

The lower rail also needs floor clearance. Short-hang garments do not have a fixed hem length, and some hangers add vertical height through the hook and shoulder geometry. If the lower row is positioned too close to the floor, garment hems can contact dust, moisture, pallet debris, or cleaning chemicals. A floor-level rail may preserve theoretical storage density while creating a contamination point.

Short-hang and long-hang zones are different systems

The double rail configuration is suitable for apparel that occupies a short vertical envelope. It is not a substitute for long-hang storage. Full-length dresses, coats, robes, and similar products need at least 150–170 cm of clear vertical height to hang without bottom contact or creasing.

This produces a basic separation:

A mixed rack can be structurally sound and operationally wrong. The lower rail may be rated for the load, but the inventory above it can still obstruct the lower row. This is a geometry problem. Increasing steel thickness does not correct insufficient clearance.

Hanger density and fabric friction

Vertical spacing controls overlap between levels. Horizontal spacing controls contact within each level.

Standard clothes hangers are approximately 18 inches wide. That does not mean each garment occupies exactly 18 inches of rack length. The hanger width is only the transverse dimension. Garment thickness, shoulder construction, sleeve volume, protective covers, and fabric compression determine the actual pitch required along the rod.

For retail and storage applications, a clearance of 1 to 2 inches between hangers is recommended to reduce friction and wrinkling. This clearance is not decorative. It provides separation between textile surfaces and allows a hanger to be removed without pulling neighboring items through the rod.

Overcrowding creates a mechanical chain:

1. Hangers are pushed into continuous contact.

2. Garment surfaces rub as individual items are moved.

3. Sleeves and shoulders become trapped between adjacent hangers.

4. Operators pull against the compressed row.

5. The load transfers into the garment rather than the hanger hook.

6. Seams, collars, and coated surfaces receive localized stress.

The damage is not limited to visible wrinkles. Repeated compression can deform shoulder lines. Friction can abrade printed surfaces, brushed fabrics, coated textiles, and loosely woven materials. Plastic garment covers can also increase resistance between adjacent items, particularly where the cover edges overlap.

A rod dimension that accepts a dense row of hangers is not automatically a good storage dimension. The rack must be assessed by usable garment pitch. If a rail is loaded according to the maximum number of hangers that can physically be forced onto it, the result is a storage blockage rather than an operating rack.

Parallel rails and the 18-inch hanger envelope

Double rail systems can use two rods at different heights, or two parallel rods positioned within the same horizontal bay. These arrangements are not equivalent.

With vertically stacked rails, the primary risk is vertical overlap. With parallel rails, the primary risk is lateral interference. A standard hanger is around 18 inches wide, and the garment body can extend beyond the hanger shoulders. If parallel rails are placed too close together, garments on the front rail press into garments on the rear rail or against the wall.

This produces the two rail clothing rack overlap problem. The rails may not touch. The garments still occupy the same volume.

Parallel configurations require clear space for:

• The full hanger width on both rails.
• Garment shoulders extending beyond the hanger.
• Hanger hooks and any anti-slip features.
• Operator hand access between the rows.
• Wall or panel clearance behind the rear rail.
• Rotation of hangers during loading and removal.

A rack intended for front-and-back apparel storage should specify the distance between rod centerlines and the resulting clear garment gap. A product listing that gives only overall depth is insufficient. Overall depth includes the tube diameter, frame members, mounting brackets, and sometimes the wall offset. None of those values confirms the usable space between garments.

Why a tight row becomes a structural issue

Overcrowding is usually described as a textile problem, but it also changes rack loading. When garments are compressed, operators apply greater horizontal force to move one hanger. That force is transferred through the rod brackets and frame joints. A rack that performs well under vertical static loading may experience loosened fasteners, bracket distortion, or local tube deformation under repeated lateral handling.

The load is also distributed unevenly. A dense group is rarely centered on the rack. Inventory accumulates near one end, especially when the rack is positioned beside a packing table, fitting area, or aisle. The eccentric load increases bending demand on the rod and torsion at the side frames.

Spacing therefore serves two functions:

• It protects the textile from pressure and abrasion.
• It prevents operators from using excessive force against the rack assembly.

Structural integrity: rod span, support, and load distribution

The rod is a beam. It does not behave like an unlimited storage line because it is made from steel tubing.

In double-hang sections, clothing rods should generally not span more than 42 inches without center support. Beyond that length, deflection becomes a controlling factor even where the total garment weight appears moderate. Deflection changes the rod geometry, lowers the center of the loaded row, and concentrates force at the brackets.

The 42-inch limit is a support-spacing rule, not a universal load rating. It does not state how many pounds a rack can carry. Commercial steel frames, light consumer frames, wall-mounted wardrobe systems, and rolling garment racks have different section sizes, joints, fasteners, and manufacturer ratings. Their capacities cannot be merged into one generic number.

A valid structural review separates at least four variables:

• Distributed load: garments spread across the rod.
• Point load: a dense cluster placed near one hanger or bracket.
• Unsupported span: the clear distance between supports.
• Connection capacity: the strength of the bracket, weld, bolt, hook, or socket supporting the rod.

A thicker rod can reduce deflection, but it may not improve the connection capacity. A stronger bracket can remain stable while the rod bows between supports. A heavy-duty frame can carry a substantial vertical load while its casters, leveling feet, or floor anchors become the weak point.

Material and finish do not replace geometry

Commercial garment racks are commonly manufactured from steel tubing with finishes such as zinc plating or epoxy-polyester powder coating. These finishes address different exposure conditions and surface requirements, but neither one corrects an undersupported rod.

Zinc-plated steel provides a sacrificial corrosion-protection layer. Its performance depends on coating continuity, damage at cut edges, fastener compatibility, and exposure to moisture or cleaning chemicals. Abrasion at hooks and brackets can remove the local protective layer. Once the base steel is exposed, corrosion can develop at the damaged area or at a trapped moisture point.

Epoxy-polyester coatings create a thicker polymer film than a basic plated surface and can provide better resistance to handling abrasion and indoor chemical exposure when correctly applied. The coating remains dependent on substrate preparation and film integrity. A scratch through the coating is a discontinuity, not a cosmetic defect only. In a humid stockroom, corrosion can progress beneath a damaged coating if water and contaminants remain at the interface.

The selection must follow the environment:

A coating specification should be read with the frame construction. A corrosion-resistant finish on a poorly braced rack does not make it suitable for commercial loading. Conversely, a structurally adequate rack with damaged or incompatible surface protection can degrade in a humid storage area.

Load ratings need a defined test condition

A load rating stated in pounds is incomplete unless the manufacturer defines the support configuration. The same rod can have a different allowable load when installed:

• Between two side frames.
• With one center bracket.
• On a wall-mounted rail.
• On a rolling base.
• Across a double-hang frame with additional cross-bracing.

The published rating should also identify whether the load is evenly distributed, whether the rack is stationary, and whether the value applies to the complete assembly or only to the rod. Without those conditions, comparing two heavy duty double rail rack dimensions by their advertised capacity is not technically valid.

For procurement, the useful data set is not a single maximum figure. It is the relationship between rod span, support position, load distribution, frame section, connection type, and operating movement.

Optimizing horizontal clearance in commercial layouts

The rack footprint determines aisle use. The hanger envelope determines whether the footprint is usable.

A standard hanger is approximately 18 inches wide. A rack bay that is only slightly wider than the hanger may accept garments in a static state, but it leaves little tolerance for skewed hangers, oversized shoulders, garment covers, or operator access. When the row is loaded, garments often rotate several degrees around the rod. Their effective width then exceeds the nominal hanger width.

This is the source of many commercial double rack spacing guide errors. Layout drawings show the steel perimeter. They do not show the moving textile envelope.

Horizontal clearance must be considered in three directions:

Along the rod

Maintain 1 to 2 inches between hangers where wrinkle prevention and controlled removal are required. The actual pitch may need to increase for thick outerwear, structured jackets, protective covers, or garments with rigid shoulder forms.

Across parallel rails

Allow enough distance for two 18-inch hanger envelopes without pressing the front and rear rows together. Include the garment body, not only the hanger. The rear rail also needs clearance from a wall, perforated panel, or adjacent fixture.

At the rack ends

Leave space between the outer hanger and the side frame. Hangers pressed against uprights can transfer load into garment shoulders and sleeves. They also become difficult to remove because the hook collides with the side structure.

A practical layout schedule should record clear dimensions rather than only overall dimensions:

• Clear rod length.
• Rod centerline height.
• Clear vertical distance between rails.
• Clear depth between parallel rails.
• Wall-to-garment distance.
• End clearance from hanger to upright.
• Distance from the lower garment hem to the floor.
• Center support spacing.
• Base or caster projection into the aisle.

The rack is a storage system only after these dimensions are applied to the loaded garments. Before that, it is a frame specification.

The usable capacity of a garment rack is the number of items that can be removed without force, not the number that can be compressed onto the rod.

Rolling garment racks: movement changes the load case

Rolling garment racks introduce dynamic forces that stationary racks do not experience. A garment load shifts when the rack starts, stops, turns, or passes over a floor joint. The casters transfer those forces into the lower frame and side uprights. If the frame is tall and the upper rails are heavily loaded, the center of gravity rises.

This does not establish a universal caster capacity or a universal maximum load. Those values depend on the specific caster, wheel diameter, frame geometry, floor condition, and manufacturer rating. The engineering issue is the change from static loading to combined vertical and lateral loading.

A rolling rack should therefore be assessed for:

• Caster load rating under the complete loaded assembly.
• Wheel lock performance.
• Caster spacing and base width.
• Cross-bracing against side-to-side racking.
• Rod retention during acceleration and impact.
• Clearance at door thresholds and floor transitions.
• Upper rail deflection under an uneven garment distribution.

A rack that is stable while stationary may sway during movement. That sway increases garment contact, hanger noise, and joint stress. It also changes the position of the load relative to the wheelbase. The safest operating practice is to keep heavy items distributed across the base and avoid concentrating all long or dense garments at one end.

Double rail rolling racks are particularly sensitive to vertical zoning. If the lower rail is loaded with dense apparel and the upper rail contains lighter garments, the total center of gravity and frame response differ from an evenly loaded system. The published capacity must be interpreted with the actual loading pattern.

Height requirements for dresses, coats, and mixed inventory

Long-hang apparel must not be placed in a short-hang bay merely because the hanger fits on the rod. The controlling dimension is the distance from the rod to the floor or lower obstruction.

For full-length dresses and coats, a clear height of at least 150–170 cm is recommended. The lower end of that range may be sufficient for some garments and insufficient for others. Garment length varies by product category, size range, hem structure, and hanger type. A specification should use the longest item expected in that rack zone, not the average item.

Bottom contact creates several forms of damage:

• Creasing from compression against the floor or lower frame.
• Abrasion from dragging during removal.
• Contamination from dust and warehouse debris.
• Moisture transfer during cleaning or floor washing.
• Distortion when the garment is pulled upward against a loaded hanger.

Long-hang storage also affects aisle behavior. A garment extending below the rod occupies more vertical volume and can project into the operator’s movement zone. If the rack is placed near packing benches or customer circulation, the lower hem can be struck by carts or footwear.

Mixed inventory should be divided into defined zones:

1. Short-hang zone: shirts, blouses, jackets, and comparable garments on two rails where 36 inches of rod-to-rod clearance is available.

2. Long-hang zone: dresses, coats, and other garments with a required clear height of 150–170 cm.

3. High-density zone: products that can tolerate closer pitch only when the manufacturer and textile handling requirements allow it.

4. Protected zone: delicate, coated, or high-friction garments requiring greater hanger separation and reduced handling force.

This zoning is more reliable than selecting a single rack height for all apparel. It prevents the common error of treating storage density as the only performance variable.

A specification method for commercial double rail racks

The correct rack can be selected from a short sequence of dimensional and structural decisions. The order matters because the garment envelope defines the frame requirements.

1. Classify the inventory by hanging length

Record the longest garment in each product group. Separate short-hang items from garments requiring 150–170 cm of clear height. Do not calculate a double rail layout from the shortest item if the bay will also receive coats or dresses.

2. Establish the rod arrangement

Identify whether the rails are vertically stacked or horizontally parallel. A vertical double-hang layout requires at least 36 inches of rod-to-rod clearance. A parallel layout requires a depth calculation based on the approximately 18-inch hanger width and the actual garment body.

3. Set hanger pitch

Use 1 to 2 inches of clearance between hangers as the baseline for reducing friction and wrinkling. Increase the pitch where garment thickness, protective covers, or shoulder structure creates additional volume.

4. Check unsupported rod length

Keep the unsupported rod span within approximately 42 inches in double-hang sections unless the manufacturer provides a tested configuration that specifies a different support condition. Add center supports where the span, load, or handling pattern requires them.

5. Separate rod capacity from frame capacity

Confirm the ratings for the rod, brackets, side frames, base, casters, and anchors. A single assembly rating is useful only when it describes the complete system under a defined loading pattern.

6. Match surface protection to the environment

Use zinc-plated or coated steel according to exposure, abrasion, cleaning process, and expected damage. Inspect cut edges, weld zones, bracket interfaces, and fasteners. These are common corrosion initiation points.

7. Draw the loaded envelope

The layout should show garments, not only uprights and rods. Include hanger width, end clearance, wall distance, floor clearance, aisle projection, and access space between parallel rows.

This process produces a rack schedule that can be compared across suppliers. It also exposes incomplete product data. If a seller lists overall width and maximum load but not clear rod length, support span, rod spacing, and usable height, the specification is not sufficient for a commercial decision.

The failure pattern behind most spacing mistakes

Double rail clothing racks do not damage garments because the concept is inherently defective. They damage garments when a short-hang system is overloaded with long-hang inventory, when rails are placed below the 36-inch clearance rule, or when hanger density eliminates the separation needed for handling.

The structural and textile failures reinforce each other. Tight spacing increases removal force. Removal force increases lateral loading. Lateral loading stresses brackets and joints. Deflection reduces clearance. Reduced clearance increases garment overlap. The system then appears to have a capacity problem even when the original error was dimensional.

The corrective action is rule-based:

• Use at least 36 inches of usable vertical rod-to-rod clearance in double-hang sections.
• Maintain 1 to 2 inches between hangers where garment protection and access are required.
• Treat an approximately 18-inch hanger as a minimum width input, not as the complete garment envelope.
• Keep unsupported double-hang rod spans at or below approximately 42 inches unless a tested specification states otherwise.
• Reserve 150–170 cm of clear height for dresses, coats, and other long-hang apparel.
• Evaluate rolling racks for dynamic movement, caster loading, and frame racking.
• Select zinc-plated or epoxy-polyester-coated steel according to the storage environment, while treating finish as corrosion control rather than structural reinforcement.

The definitive selection rule is simple: choose the rack from the largest garment envelope and the worst credible load position. Then verify the rod supports, connections, base, and surface protection. Storage density is acceptable only after clearance and structural integrity have been established.
