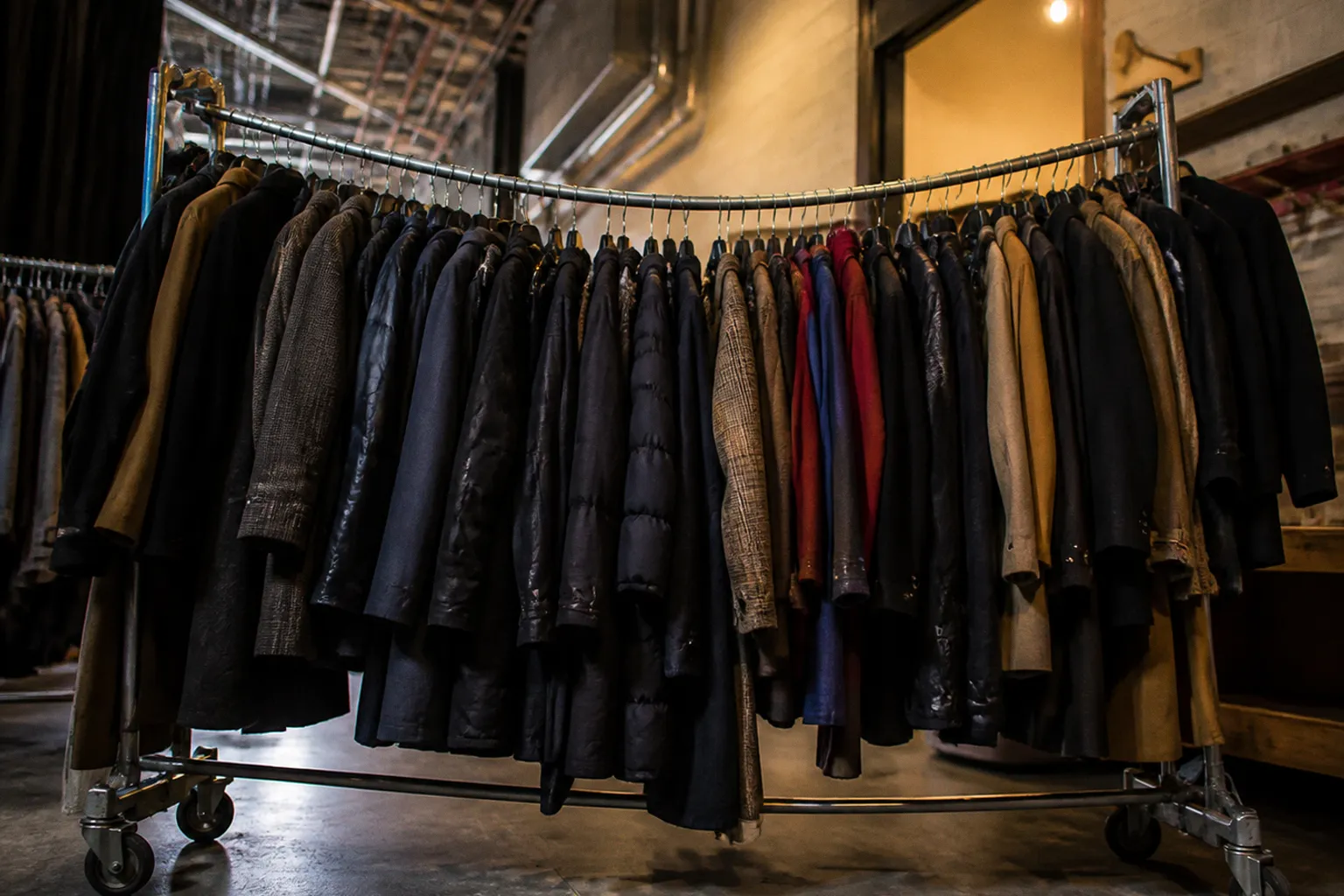

Commercial garment rack weight capacity traps to avoid

Rolling the same rack across a stockroom introduces lateral force, caster impact, frame racking, and uneven loading. Practical mobile capacity can fall by roughly 30% to 40%, reducing the usable load to about 259.6 lb (118 kg).

The second failure point is the hanging bar. A rack can have thick uprights and still fail at the rail, bracket, weld, or caster. Span length is a structural variable, not a layout detail. One steel pipe example carries 689 lb over a 2 ft span but only 229 lb over 6 ft. The reduction is caused by bending stress and deflection, not by a change in steel grade.

Commercial garment rack weight capacity limits are therefore not single numbers. They are the result of the weakest component, the load position, the floor condition, and whether the rack remains stationary or moves under load.

The printed rating is usually a static number

Static load means the rack is standing on a level surface, with the casters or feet fully supported, and the garments distributed in a controlled manner. There is no acceleration, collision, floor joint, threshold, or directional force. This is the least demanding condition for the frame.

A static test also assumes that the load is applied gradually. Garments are placed on the rail. They are not thrown onto it. The rail is not pulled sideways while hangers are being added. The rack is not stopped abruptly after being pushed across the floor.

Those conditions matter because a rack responds to vertical weight and lateral force differently:

• Vertical weight compresses the uprights and bends the hanging rail.
• Lateral force causes the rectangular frame to rack out of square.
• A floor joint transfers impact into the caster brackets and lower frame.
• Uneven garment distribution shifts the center of gravity away from the rack centerline.
• A sudden stop increases force at the wheels, welds, and rail supports.

The rating printed in a product specification may be valid under the first condition and irrelevant to the remaining four. This is the primary trap in heavy duty clothes rack weight rating comparisons. Buyers compare the largest number and ignore the load case used to produce it.

A mobile rack rated at 440 lb static should not be treated as a 440 lb mobile storage unit. A practical operating limit around 259.6 lb may be more realistic when the rack is rolled through a stockroom or across floor expansion joints. That figure illustrates the difference between static and dynamic service; it does not establish a universal conversion factor for every manufacturer.

A rack does not have one safe load. It has a safe load for a defined condition.

Manufacturers do not always publish dynamic testing data. The static rating is not a substitute for a verified mobile rating. For any rack that will be moved while loaded, the operating limit should be confirmed by referencing the manufacturer's published dynamic test data, or by contacting the manufacturer directly for the specific caster and frame combination in use. Without that confirmation, the operating limit has to be derived from the rack design, the caster specification, the floor condition, and the movement pattern, and treated as conservative rather than absolute.

Span length controls the hanging rail

The hanging rail is a beam. Its capacity depends on the steel section, wall thickness, support spacing, connection method, load distribution, and span. The rack's overall width is not a neutral dimension. Increasing the distance between supports increases bending demand.

For a simply supported beam carrying a uniformly distributed load, bending moment increases with the square of span length. Deflection increases more severely, often with the fourth power of span under comparable conditions. The exact result depends on support geometry and section properties, but the direction is fixed: a longer rail bends more.

This is why an apparently modest increase from a 2 ft span to a 6 ft span can produce a major capacity reduction. In the cited steel pipe example:

The 229 lb figure is not a universal capacity for every 6 ft garment rack. It is a direct illustration of span sensitivity. The rail diameter, wall gauge, steel grade, end supports, and test method still determine the actual result.

The common purchasing error is to compare upright material while ignoring rail geometry. A rack made from high-tensile steel can fail if the rail is undersized for its span. Conversely, a smaller rack with a shorter rail may carry more concentrated weight without unacceptable deflection.

Deflection is not merely a cosmetic defect. A sagging rail changes the load path. The center of the rail moves downward, the end connections receive altered forces, and the hangers migrate toward the low point. That concentrates garments near the center and increases local bending. If the rail is removable, the bracket can also begin to rotate or pull away from the upright.

For long commercial racks, inspect the following load-bearing details:

• Clear distance between rail supports, measured from actual support center to support center.
• Outside diameter and wall thickness of the rail.
• Whether the rail is round tube, rectangular tube, pipe, or formed sheet.
• Number and type of intermediate supports.
• Connection between the rail and upright: welded, bolted, hooked, or friction-fit.
• Presence of a center support that divides the bending span.
• Maximum permitted deflection, if the manufacturer publishes one.

A rail with a center support is not equivalent to the same rail without one. Dividing a 6 ft span into two shorter spans changes the bending condition substantially. The support itself must still transfer the load into the upright and base. It is not useful if its bracket or weld is the weak component.

The weakest component sets the industrial clothing rack load capacity

The frame is a system. The system fails at the component with the lowest capacity, not at the component that looks heaviest.

A rack may use structural pipe for its uprights but thin stamped brackets at the rail. It may have a strong upper frame and residential-grade casters. It may use zinc-plated steel hardware with adequate corrosion resistance for a dry stockroom but weak connector joints that loosen under repeated movement.

The principal bottlenecks are usually:

1. Casters. Each wheel carries a portion of the vertical load. The actual distribution is not always equal, particularly on an uneven floor or a frame that has racked out of square. Wheel diameter, tread material, swivel plate, stem connection, and individual load rating all affect mobile performance. A caster failure can occur while the steel frame remains intact.

2. Caster plates and lower brackets. A wheel may have a suitable nominal rating while the plate, bolt pattern, or welded tab does not. Rolling over a floor joint creates impact at this interface.

3. Rail brackets. The bracket transfers rail bending into the upright. A thin bracket with a narrow bearing surface can deform before the rail reaches its theoretical steel capacity.

4. Connector joints. Push-fit and friction-fit joints are vulnerable to looseness, ovalization, and local deformation. Repeated lateral movement can produce progressive play even when the vertical static load is within the stated rating.

5. Welds. Weld quality, throat size, continuity, and heat-affected zones influence the joint. A heavy tube does not compensate for a discontinuous or undersized weld.

6. Uprights. Slender uprights can buckle under compression or bend when the load is eccentric. The failure mode changes when garments are concentrated on one side.

7. Base geometry. A narrow base increases overturning risk. A wide base reduces this risk but does not increase rail capacity. Stability and material strength are separate calculations.

The correct comparison is not frame rating versus frame rating. It is component rating versus component rating under the same service condition.

For a mobile rack, the nominal caster load can be estimated by dividing total operating weight by the number of casters, but this is only a first approximation. Uneven floors and frame distortion can shift more load onto some wheels than others. The calculation also needs to include rack self-weight, not only garments.

If the rack weighs 80 lb and the garments weigh 300 lb, the casters carry 380 lb in total. A four-caster base would show a simple average of 95 lb per caster. That average does not prove that each caster is safely rated to 95 lb during movement. The dynamic force at a threshold or expansion joint is higher than the static average.

Do not use the largest number on the product page as the system capacity. Use the lowest verified capacity among the rail, brackets, uprights, base, joints, and casters, then reduce it for the actual operating condition.

Mobile use changes the load case

Rolling garment racks are exposed to forces that stationary racks do not experience. The operator applies force at a handle, rail, or side frame. The force is rarely centered at the rack's center of gravity. That creates a moment that twists the frame.

The floor condition controls how much of this force becomes an impact. A smooth, level concrete floor allows the casters to roll with limited disturbance. A floor expansion joint, damaged tile, threshold, loading dock transition, or carpet edge can stop one wheel while the remaining wheels continue forward. The lower frame then absorbs a lateral and torsional impulse.

This is the basis for the 30% to 40% practical reduction commonly associated with moving a loaded commercial rack. It should be treated as an operating consideration, not a certification value. A rack moved slowly on a level floor is not exposed to the same forces as a rack pushed quickly over an obstruction.

The following conditions increase dynamic stress:

• The rack is pushed rather than pulled, reducing operator control near obstacles.
• The load is concentrated at the rail center or one end.
• Garments are dense and heavy, such as coats, uniforms, leather goods, or wet textiles.
• The casters have small wheels that cannot pass floor joints cleanly.
• One caster is misaligned or carries a different load because the base is not level.
• The rack is stopped abruptly against a wall, dock plate, or floor defect.
• The upper frame is used as a steering point, producing torsion in the uprights.
• The load is near the top of a tall wardrobe storage system, raising the center of gravity.

A stationary rack can be restrained against a wall or floor, but that does not increase the bending capacity of its rail. Restraint controls movement and overturning. It does not repair an undersized bracket or an overloaded pipe.

For stockroom use, the load plan should separate storage from transport. A rack can hold a defined static load in a fixed position and carry a lower mobile load between locations. If staff must move the rack fully loaded, the mobile limit becomes the controlling value. If the rack is loaded only after reaching its position, the static rating may govern, provided the floor is level and the frame remains stable.

Residential clothing racks are not smaller commercial racks

Light-duty residential racks commonly use thin-walled steel tubing, plastic joints, or telescoping connections. Their stated capacity typically falls in the range of 20 kg to 40 kg, or approximately 44 lb to 88 lb. That range is suitable for limited domestic storage. It does not establish a commercial service rating.

The difference is not only the amount of steel. Commercial garment racks must tolerate repeated loading cycles, hanger impact, operator contact, and movement across a defined floor area. Industrial clothing racks may use high-tensile steel, structural pipe, welded bases, reinforced brackets, and casters selected for repeated rolling.

A residential rack can appear stable when loaded with light shirts and still become unstable when used for coats. Garment weight is not uniform. Ten jackets occupy a different load condition from ten shirts even if both groups fill the same rail length. Dense items increase the vertical load and can also create a concentrated cluster if the hangers are pushed together.

The distinction can be summarized as follows:

A zinc-plated finish indicates a corrosion-protection treatment. It does not indicate high tensile strength, rail stiffness, weld quality, or mobile capacity. Likewise, an epoxy-polyester coating provides a surface finish and chemical barrier but does not turn thin tubing into structural pipe.

Material specification and structural specification must remain separate. The relevant questions are the steel section, gauge, joint design, support spacing, and test condition. Finish chemistry is relevant when the rack operates in humid or contaminated environments, but it is not a substitute for a load calculation.

A practical method for commercial rack weight limit calculation

A usable load limit begins with the real operating condition, not the catalog headline. The calculation does not need to become a full finite-element model for every retail fixture. It does need to identify the load path and the likely failure point.

1. Define the load

Measure or estimate the total garment mass. Include hangers, shelf inserts, signage, and any accessories attached to the frame. Separate evenly distributed garments from concentrated bundles.

A rail loaded with coats at one end has a different bending condition from the same total mass spread across its full length. If the product rating assumes uniform distribution, a concentrated load should be treated as a separate case.

2. Separate stationary and mobile service

Record whether the rack will remain fixed or move while loaded. A 440 lb static rating cannot be copied directly into a mobile operating plan. For mobile use, account for the documented or observed reduction caused by rolling friction, lateral stress, and floor transitions.

A practical example is a 440 lb static rack that is reduced to approximately 259.6 lb for mobile operation. The figure illustrates the scale of the reduction. It does not replace manufacturer-specific testing, and it should be replaced wherever the manufacturer publishes a dynamic rating for the actual caster and frame combination.

3. Identify the longest unsupported span

Measure the rail span between actual supports. Do not measure the full rack width if the rail includes intermediate brackets. Do not assume that a thick upright proves a strong rail.

The 2 ft and 6 ft comparison demonstrates the consequence: 689 lb across the shorter span versus 229 lb across the longer span in one steel pipe example. A capacity estimate that ignores span is incomplete.

4. Find the lowest component rating

List the ratings for the rail, brackets, upright connections, base, and each caster. If one component has no published rating, it remains an uncertainty rather than an automatic full-capacity component. Treat unrated parts as the upper bound for the system once the lowest published rating is known, and assume the unrated part may be the actual limit.

5. Apply a service factor for the operating condition

Reduce the lowest published component rating further based on the actual use. A stationary rack on a level floor in a controlled retail backroom needs a smaller reduction than a rack that is rolled daily across expansion joints. The 30% to 40% range associated with mobile use is a starting reference, not a regulated figure.

The service factor covers:

• Frequency of movement, expressed in cycles per shift or per day.
• Floor quality, including joints, cracks, thresholds, ramps, and transitions.
• Load pattern, including uniform versus concentrated distributions.
• Operator handling, including pushing, pulling, and stopping technique.
• Environmental exposure, including humidity, temperature swing, and chemical contact.

A rack that is moved twice a week across a flat polished floor is in a different service category from a rack that is moved several times per day across a warehouse floor with expansion joints. The operating limit should reflect that difference.

6. Document the basis

Write down the calculation inputs: the static rating, the manufacturer's dynamic rating if available, the span measurement, the caster rating, and the service factor. This makes the operating limit repeatable and reviewable. If the rack is later modified, serviced, or relocated, the same calculation can be re-run instead of re-estimated.

A weight limit that is not written down tends to drift upward in practice. Operators add stock until the rack no longer feels safe, and the safe load shifts with the rack.

Reading the rating without overstating it

The trap in commercial garment rack weight capacity is not that the numbers are wrong. The numbers are usually accurate for the condition in which they were measured. The trap is that the same number is then applied to a different condition without recalculation.

A static rating on a level floor is a real engineering value. It is not a warranty for mobile service, long-span hanging, uneven loading, or repeated cycles. The defender in this calculation is the operator and the buyer, not the manufacturer. The manufacturer has stated a single number; the user must decide what that number means in the actual stockroom, retail floor, or warehouse.

A few habits keep the analysis honest:

• Treat the largest published number as the static ceiling, not the operational ceiling.
• Confirm dynamic behavior with the manufacturer before rolling a loaded rack over floor transitions.
• Compare rail geometry before comparing rail material.
• Read the lowest component rating, not the highest frame rating.
• Apply a service factor that reflects the floor, the load pattern, and the movement frequency.
• Document the chosen limit and revisit it when the rack is modified or relocated.

A garment rack is treated correctly when its stated load matches its stated condition, and when the user has verified that the actual operating condition matches the stated one. Where that match is absent, the operating limit should be set lower, documented, and explained to anyone who loads the rack. That is the practical discipline behind commercial garment rack weight capacity limits, and the only way to keep the frame intact beyond the warranty period.
