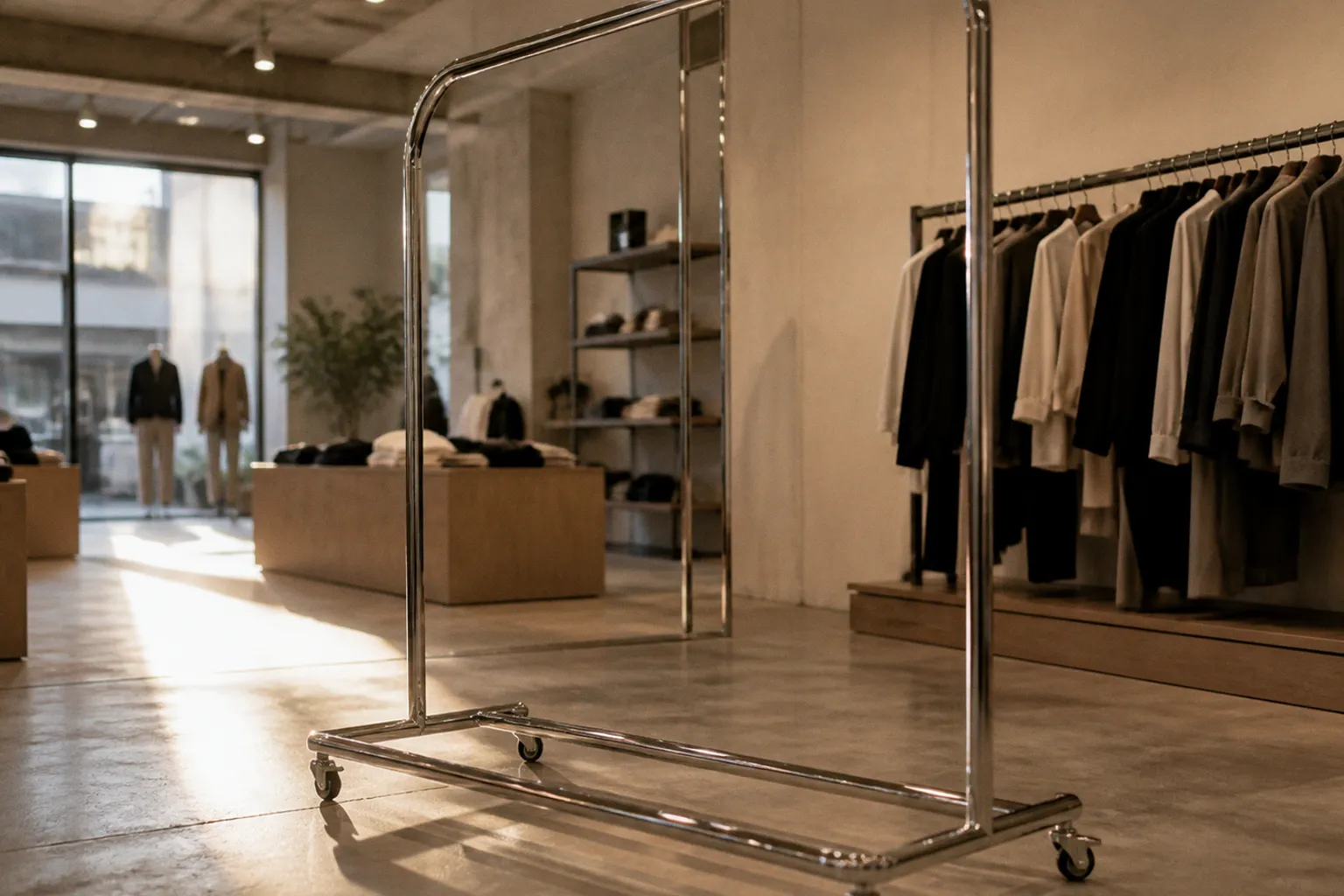

Nickel plated display racks: a boutique longevity roadmap

The rack still carries load through its steel, brass, copper, or aluminum section. Nickel plating controls how that substrate responds to air, moisture, handling, abrasion, and chemical exposure.

This distinction is operationally important. A rack can have a consistent nickel layer and still fail through undersized tubing, weak welds, local buckling, or overloaded brackets. Conversely, a structurally adequate rack can deteriorate early if the finish is porous, thin at exposed edges, or damaged by unsuitable cleaning agents. Nickel plated garment racks durability is therefore a materials problem and a structural problem. The two must be specified separately.

The metallurgical function of nickel plating

Nickel plating is not equivalent to applying paint over steel. The deposit forms a metallurgical bond with the base material. Steel, brass, copper, and aluminum can all serve as substrates when the surface preparation and plating sequence are controlled correctly.

The result is a continuous metallic layer with three primary functions:

• It separates the base metal from direct exposure to air and moisture.
• It improves resistance to wear caused by repeated contact with hangers, brackets, garment hardware, and cleaning equipment.
• It produces a reflective surface that can be specified from bright nickel to lower-gloss or satin nickel finishes.

Nickel itself forms a protective oxide layer when exposed to air and moisture. That oxide is not a decorative afterthought. It acts as a passivating barrier that slows further oxidation of the nickel surface and reduces direct access to the underlying substrate.

The barrier is not absolute. Nickel plating is not scratch-proof. It is not immune to acidic solvents. Once the layer is breached, the performance of the system depends on the exposed substrate, the geometry of the defect, the presence of moisture, and the chemical environment around it.

The base material remains the primary structural component. A nickel layer measured in microns cannot compensate for a tube wall that is too thin for the applied bending moment. It cannot correct a weld with insufficient penetration. It cannot prevent a foot plate from deforming when the rack is loaded outside its intended footprint.

Nickel plating protects the surface. It does not raise the rack’s load capacity.

For specification purposes, separate the rack into two systems:

1. The load-bearing system — tube diameter, wall thickness, section modulus, welds, fasteners, base plates, bracing, and anchorage.

2. The surface system — substrate preparation, nickel deposition method, layer thickness, phosphorus content where applicable, sealing, cleaning compatibility, and repair procedure.

Conflating these systems produces inaccurate purchasing decisions. A rack selected only for finish may have insufficient stiffness. A rack selected only for capacity may have a surface that degrades under retail handling.

Electrolytic and electroless nickel deposition

There are two relevant nickel plating routes for commercial display hardware: electrolytic electroplating and autocatalytic electroless deposition. The difference is not cosmetic. It affects thickness distribution, edge behavior, fixture design, and the suitability of the process for complex rack geometries.

Electrolytic nickel plating

Electrolytic plating uses an external electrical current to deposit nickel onto the prepared rack. Current density is not distributed evenly across every point of a three-dimensional object. Edges, corners, and protruding features receive higher deposit build-up because of electric field distribution.

This creates a familiar trade-off:

• External edges may receive more nickel than recessed or shielded areas.
• Sharp corners can accumulate material faster than broad internal surfaces.
• Tubular assemblies, hooks, welded junctions, and bracket interfaces require controlled positioning in the plating bath.
• The apparent finish may be uniform while the actual layer thickness varies across the rack.

For simple straight components, this may be manageable. For assembled garment racks with multiple horizontal bars, uprights, elbows, welded shelves, and concealed intersections, fixture design becomes a process-control issue rather than a workshop convenience.

Electrolytic plating remains practical when the manufacturer can control current distribution, immersion position, masking, pre-treatment, rinsing, and post-plating inspection. A rack should not be evaluated solely from a sample coupon. A flat coupon does not reproduce the current-density pattern around a welded retail fixture.

Electroless nickel plating

Electroless nickel is deposited without relying on an external electrical current. The autocatalytic process can produce a highly uniform deposit thickness across complex geometries, including recessed sections and irregular profiles that are difficult to plate evenly by conventional electrolysis.

This uniformity has direct value on display racks. Clothing fixtures often contain:

• Welded tube intersections.
• Internal corners.
• End caps and concealed returns.
• Small hooks and retaining features.
• Brackets with varying exposure to the plating bath.
• Large frames that must remain stationary during processing.

Where geometry is complex, an electroless process can reduce the difference between exposed edges and less accessible surfaces. It does not eliminate the need for cleaning, activation, bath control, and inspection. Uniform deposition is a property of a controlled process, not an automatic result of the word electroless.

The choice between the two methods should be tied to geometry and service conditions. Electrolytic deposition may be adequate for uncomplicated rack members with accessible surfaces. Electroless nickel becomes more defensible when the rack has complex welded geometry, recessed surfaces, or a requirement for more consistent layer thickness across the whole fixture.

The table does not determine which process is superior in every application. It identifies the failure mode each process makes more likely. The correct selection depends on the rack geometry, required appearance, exposure to moisture, handling intensity, and inspection standard.

What the 5–30 µm range means in practice

Typical decorative and functional nickel plating layers fall within a range of approximately 5–30 µm. A broader general metal-plating range is sometimes cited at approximately 0.025–0.1 mm, but these values should not be treated as a universal requirement for every clothing rack. There is no single thickness that defines adequate performance for all boutique fixtures.

At 5 µm, the deposit is a thin barrier. It can provide the intended metallic finish and a degree of protection, but the margin for process variation, abrasion, porosity, and edge damage is limited. It should not be selected automatically for a rack subjected to constant hanger contact or frequent relocation.

At the upper end of the common range, around 30 µm, the system provides more material between the retail environment and the substrate. High-phosphorus electroless nickel-phosphorus coatings can also be specified at phosphorus contents of approximately 8–12% where corrosion resistance is the main requirement. Up to 30 µm is cited as a thickness suitable for zero-porosity objectives in nickel-phosphorus coatings. That statement applies to a coating specification and process condition, not to an unconditional guarantee for every rack.

A more useful way to specify thickness is to connect it to the rack’s exposure:

• Low-contact decorative use: a thinner layer may be acceptable when the rack remains fixed, garments are handled carefully, and the environment is dry.
• High-contact garment display: repeated hanger movement, contact with metal accessories, and regular repositioning justify a thicker and more closely inspected layer.
• Moist or chemically aggressive environments: thickness alone is insufficient. Deposition uniformity, substrate preparation, phosphorus alloy selection, and cleaning controls become equally important.
• Complex welded frames: nominal thickness should be accompanied by a statement about thickness variation across edges, recesses, joints, and concealed surfaces.

Nominal thickness is not the same as minimum thickness at every point. A manufacturer can state a nominal 20 µm layer while leaving critical recesses below that value if the process is poorly controlled. For a commercial rack, the relevant question is not only how much nickel was deposited in the bath. It is where the deposit is thickest, where it is thinnest, and how those locations correspond to actual wear points.

Thickness and mechanical wear

A garment rack experiences contact that is repetitive but usually localized. The most exposed areas are not always the largest surfaces. They are often the top of the hanging bar, the front radius of a tube, the leading edge of a bracket, the contact point beneath a hook, and the area around a removable connector.

These locations receive several forms of stress:

• Sliding abrasion from hangers.
• Point contact from metal fittings.
• Impact from relocation or assembly.
• Fretting at bolted or clamped joints.
• Cleaning abrasion from pads, brushes, or contaminated cloths.
• Local damage caused by sharp garment hardware.

A nickel layer can resist surface wear, but the outcome depends on contact pressure and debris. A soft cloth carrying metal particles can act as an abrasive. A rack cleaned with an acidic solvent can lose surface protection even when no immediate scratch is visible. A damaged layer near a welded joint can expose a crevice where moisture remains longer than it does on an open tube.

For that reason, the finish specification should identify the high-wear zones. If the rack will be assembled and disassembled repeatedly, the mating surfaces and fastener interfaces require separate consideration. Plating over a threaded or clamped interface can alter fit, create local chipping during assembly, or hide poor surface preparation.

Corrosion resistance and phosphorus alloys

Nickel is often selected because it provides a barrier against corrosion while retaining a metallic appearance suitable for commercial display hardware. The mechanism is straightforward: the plated layer limits contact between the substrate and the environment, while the nickel oxide film slows oxidation at the outer surface.

The performance is strongest when the layer is continuous and sufficiently thick for the intended exposure. Porosity is the controlling weakness. A discontinuity may expose steel, copper, brass, or aluminum beneath the nickel. If moisture enters that defect and remains there, corrosion can develop locally even though the surrounding surface appears intact.

Electroless nickel-phosphorus coatings provide another specification variable. High-phosphorus alloys generally contain approximately 8–12% phosphorus when corrosion resistance is prioritized. The phosphorus changes the deposit structure and can support a more corrosion-resistant coating system, especially when combined with sufficient thickness and proper substrate preparation.

That does not make high-phosphorus nickel a universal answer. Alloy content must be connected to the environment and the required finish. A boutique rack in a conditioned retail floor does not face the same exposure as hardware used near loading doors, humid stockrooms, wash areas, or coastal air. The rack’s position within the building matters.

Substrate selection remains visible through failure

The substrate is not irrelevant because it is covered. It determines the consequences of coating damage.

• Steel: provides a common load-bearing base, but exposed defects can become corrosion sites. Weld zones and heat-affected areas require careful preparation before plating.
• Brass: can provide a suitable base for nickel deposition and may be selected for its machining and forming characteristics. Surface contamination or uneven polishing can remain visible through the finished layer.
• Copper: is conductive and compatible with plating systems, but galvanic interactions and substrate preparation must be considered where dissimilar metals are joined.
• Aluminum: requires controlled pre-treatment and activation. A nominal nickel finish does not remove the need to manage adhesion and substrate chemistry.

The visible finish is the final stage of a chain. Degreasing, cleaning, activation, rinsing, polishing, intermediate layers, nickel deposition, and any sealing operation can affect the result. If the substrate is contaminated, the nickel layer may be continuous in appearance but weak at the interface. If polishing leaves directional defects, the final rack will reproduce those defects under the reflective finish.

This is why the term “nickel plated” is incomplete as a procurement specification. It identifies the surface metal. It does not identify the substrate, the deposition method, the nominal and minimum thickness, the alloy composition, the inspection points, or the chemical limits for maintenance.

Rack plating techniques for large and delicate fixtures

Garment racks are not small fasteners. A full-size display fixture can be long, welded, difficult to rotate, and vulnerable to contact damage during processing. Rack plating therefore uses custom fixtures to hold large or delicate items stationary during electroplating. This avoids the tumbling damage associated with barrel plating and allows the manufacturer to control the rack’s position in the bath.

The fixture affects three outcomes:

1. Electrical or chemical access. The rack must expose the required surfaces to the plating solution. Shielded areas can produce lower deposition or incomplete preparation.

2. Mechanical stability. The part must remain stationary. Contact between racks, hooks, supports, or tank hardware can damage the surface before the finish is complete.

3. Contact-point management. Every fixture contact may create a masked or less-plated area. These points must be selected away from visible and high-wear locations where possible.

Large fixtures also introduce handling risks after plating. A rack can leave the bath with a correct deposit and then be damaged during rinsing, drying, inspection, packaging, or installation. Sharp contact with a pallet, metal shelf, or another plated component can create a defect that is later attributed incorrectly to the plating bath.

For this reason, manufacturing quality should be assessed at the assembled-rack level. A polished sample tube does not establish the performance of a welded clothing rack. The inspection should include:

• Welded intersections.
• Tube ends and cap interfaces.
• Bracket connections.
• Exposed corners and bends.
• Fixture contact locations.
• Recessed surfaces.
• Areas where hangers repeatedly contact the bar.
• Fastener and adjustment interfaces.

The process is also affected by pre-plating polishing. Bright nickel requires a substrate that has been prepared to the required surface condition. Plating does not erase deep scratches, pits, weld spatter, or grinding marks. It reproduces the underlying surface with a metallic layer. Increasing thickness is not a substitute for poor substrate preparation.

A stated plating thickness has little value if the manufacturer cannot identify where that thickness was measured.

Nickel versus chrome and other rack finishes

Nickel plating should be compared with other commercial rack finishes by service condition, not by surface color. Chrome plating, powder-coated steel, polished copper, brass finishes, and mirror black finishes each create different maintenance and failure behaviors.

Chrome is commonly used where a hard, reflective surface is required. In many commercial systems, chrome is applied over a nickel layer rather than treated as a direct substitute for nickel. The exact stack depends on the manufacturer. Therefore, a finish listed simply as “chrome” does not disclose the underlying plating sequence or the thickness of each layer.

Powder-coated steel uses a polymer coating rather than a metallic deposit. It can provide broad color control and a continuous visual field, but impact damage can expose the steel substrate. Repair matching may be more visible than with a metal-plated rack. The coating also depends on substrate preparation and curing control.

Polished brass and copper finishes present a different maintenance profile. Their appearance depends on the behavior of the underlying alloy and any protective clear coat. Copper and brass can change tone under exposure to air, moisture, fingerprints, and cleaning chemicals. A nickel layer over a suitable substrate is generally selected when a more stable metallic barrier is required, but it still requires compatible cleaning.

Satin nickel garment racks reduce visible reflection compared with bright polished nickel. The surface texture can make minor handling marks less conspicuous, but satin texture is not the same as increased structural or corrosion performance. It remains a nickel-plated surface whose durability depends on deposition thickness, uniformity, substrate, and use.

A practical comparison is therefore based on failure modes:

The visual target should never override the exposure profile. A finish with high reflectivity can be appropriate for low-contact presentation hardware and inappropriate for racks that are constantly moved, loaded, unloaded, and cleaned with aggressive materials.

Maintenance of nickel plated clothing racks

Maintenance begins with preventing contamination from becoming abrasion. Dust alone is not the main concern. Dust mixed with metal fragments, sand, or residue from packaging can scratch the surface during wiping.

Use a soft, clean cloth that has not been used on abrasive equipment. Remove loose particles before applying pressure. The cleaning solution should be compatible with nickel plating and free from acidic or otherwise aggressive chemistry unless the finish supplier has approved it. Avoid abrasive pads, metal brushes, scouring powders, and solvents with uncertain compatibility.

The rack should be inspected at the locations where contact is concentrated:

1. Hanging bars: look for linear wear from repeated hanger movement and localized marks beneath heavy hardware.

2. Welded joints: inspect crevices where moisture or cleaning residue can remain.

3. Base plates and feet: check for coating damage caused by dragging, impact, or contact with wet floors.

4. Adjustable connectors: inspect threaded areas and clamp points for chipping or interference.

5. Corners and bends: check for edge wear, where electrolytic deposition may differ from broad-surface thickness.

6. Areas near loading doors or wash zones: monitor discoloration, residue, and early corrosion at any exposed substrate.

Do not drag a plated rack across concrete, steel thresholds, or unfinished flooring. The mechanical damage can exceed the wear generated during normal garment handling. If relocation is necessary, lift the rack or use a handling method that isolates the feet from abrasive surfaces.

A damaged area should be assessed before it is polished aggressively. Polishing can remove additional material or spread contamination across the surrounding finish. If the substrate is visible, the repair requires more than cosmetic cleaning. The manufacturer should identify whether local repair is permissible, whether the part should be replated, and whether the defect affects a structural joint.

Maintenance also includes load discipline. Overloading the rack increases deflection in the horizontal bar and stress at the welded or bolted connections. That movement can accelerate fretting at contact points and place additional pressure on the finish. The surface system does not compensate for an unstable load path.

How to specify nickel plated garment racks

A procurement document should force the manufacturer to describe the complete rack rather than naming only the finish. The useful questions are technical and finite:

• What is the base material: steel, brass, copper, aluminum, or a combination?
• Is the nickel deposit electrolytic or electroless?
• What is the nominal plating thickness?
• What minimum thickness is expected at edges, recesses, welded intersections, and fixture contact areas?
• If the coating is nickel-phosphorus, what phosphorus range is specified?
• Is the stated thickness measured on a test coupon or on the finished rack?
• Which surfaces are masked or left unplated?
• How are large frames supported during plating?
• What cleaning agents are approved for routine maintenance?
• How are scratches, exposed substrate, and damaged feet repaired?
• Does the stated load capacity apply to the complete assembled rack or only to an individual bar?
• At what span, support spacing, and load distribution was the capacity determined?

The load questions are not secondary. Garment load is usually distributed along a bar, but the rack does not experience only vertical compression. The horizontal member bends between supports. The uprights transfer shear and bending into the base. Eccentric loading creates torsion. A heavy cluster of garments at one end can produce a different response from the same total mass distributed evenly across the bar.

A plated tube with a high-load steel core can remain serviceable while the finish wears. A rack with a low-capacity frame can retain its finish while the structure yields. The failure sequence is independent of the visual quality of the surface.

For high-contact commercial use, the strongest specification is not “premium nickel finish.” It is a defined substrate, deposition method, thickness range, geometry-specific uniformity requirement, cleaning limit, and tested load condition. That language gives the manufacturer measurable obligations.

The rule for selecting a finish

Select nickel plating when the rack requires a metallic barrier, controlled reflectivity, and resistance to ordinary retail handling, and when the manufacturer can document the deposition process across the actual rack geometry. Select electroless nickel where complex geometry and thickness uniformity are more important than a simple straight-member process. Specify a higher thickness within the applicable range when contact, moisture, and relocation increase the probability of wear, but do not treat thickness as a substitute for substrate preparation or structural sizing.

For a dry, fixed display rack with limited contact, a controlled decorative nickel layer may be sufficient. For a mobile fixture used throughout a retail floor, specify the wear zones, fixture handling, and repair procedure. For humid or chemically exposed locations, consider a nickel-phosphorus system with an appropriate phosphorus range and a coating thickness directed toward corrosion resistance. For any rack carrying substantial garment mass, verify tube dimensions, wall thickness, weld quality, support spacing, and base stability independently of the finish.

The definitive rule is simple: specify the load path for weight, the plating system for exposure, and the maintenance procedure for the actual cleaning environment. Nickel plated garment racks durability is not a finish label. It is the combined result of structural capacity, metallurgical bonding, deposit uniformity, coating thickness, and controlled handling.
