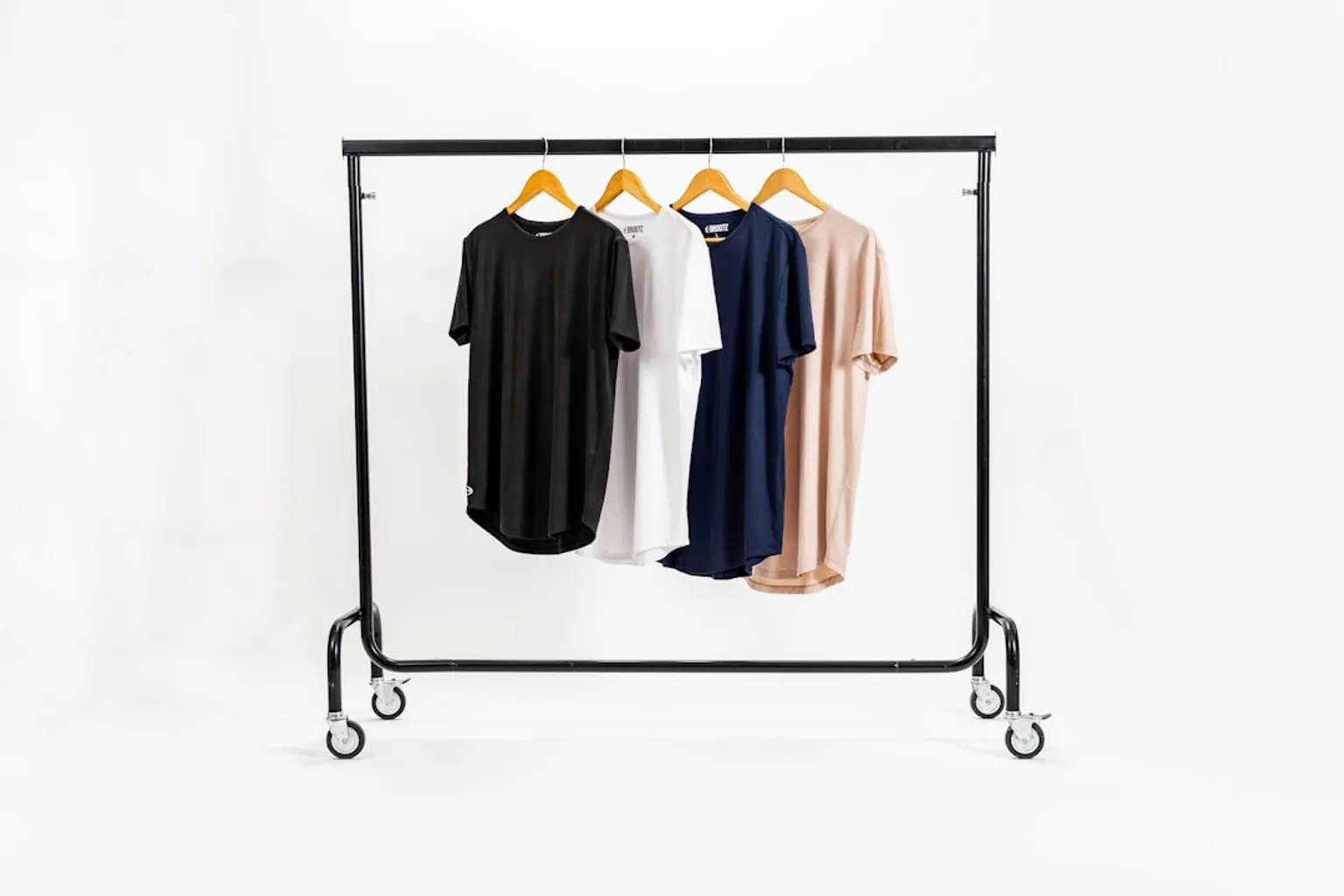

Powder coated rack defects that ruin retail garments

For clothing, the relevant failure is not collapse. It is a thread pulled from silk, satin, lace, knitwear, or fine wool by a surface defect measured in fractions of a millimeter.

The coating window is narrow. Conventional powder systems generally cure at 325–400°F (163–204°C), with the cure period beginning only after the metal substrate reaches the target temperature. A standard dry film thickness is approximately 2.0–5.0 mils, or 50–125 microns. Mechanical performance is usually strongest around 60–80 microns. A single coat above 120 microns increases the risk of cracking, poor adhesion, and edge failure.

A rack does not need to bend to damage inventory. A hard bump, an uncoated edge, or a flaking chip is sufficient.

The phrase “powder coated rack finish defects” covers several different failure mechanisms. Weld spatter produces hard geometric projections. Powder spitters and orange peel create roughness. Pinholes expose the coating to gas release and corrosion. Poor adhesion causes peeling. Edge pull and the Faraday cage effect leave joints and corners undercoated even when the broad tube surface appears uniform.

These defects are manufacturing faults, not unavoidable properties of powder coating. A correctly prepared, correctly applied, and correctly cured rack can provide a durable, low-friction surface. The inspection standard must be based on fabric contact and corrosion exposure, not on appearance alone.

The mechanics of snagging: weld spatter and surface irregularities

Weld spatter consists of molten metal droplets expelled during welding. On a garment rack, these droplets commonly occur near tube joints, mounting plates, brackets, and intersections where weld current, shielding gas, electrode angle, or travel speed was not controlled correctly.

Powder coating does not remove weld spatter. It encapsulates it.

The result is a hard bump beneath the finish. Powder may reduce the sharpness of the original steel projection, but it does not eliminate the underlying geometry. At the contact point, the coating stretches over the bump and can become thinner at the apex. Repeated contact with hangers or garments then concentrates force on a small area.

The defect is more severe when the spatter has a pointed profile, a fractured edge, or incomplete coating coverage. Silk, satin, lace, and fine knits can catch on projections that would not be noticeable by casual visual inspection. Denim and heavy wool are less sensitive because their yarn structure is more resistant to localized pulling, but they are not immune to abrasion.

Where weld spatter appears

A forensic inspection should focus on locations where the rack was assembled or welded rather than treating every tube section equally.

Common locations include:

• Tube-to-tube intersections, particularly where one horizontal member terminates against a vertical post.
• Base plates and castor mounting brackets, where welds are frequently ground less carefully.
• Corners formed by square or rectangular tube.
• The underside of rails, where poor lighting allows defects to pass final inspection.
• Internal faces of frames and brackets that are difficult to reach with grinding tools.
• Areas around repair welds, where a second welding operation may introduce additional spatter.
• Weld seams with visible pinholes, craters, or abrupt transitions between the bead and parent metal.

A smooth coating does not prove a smooth substrate. Run a clean nylon inspection cloth over the full garment-contact path. If the cloth catches, the rack requires direct examination. A fabric test is more relevant than a visual test because the failure mode involves thread engagement, not visual inconsistency.

Grinding is not the same as removing the defect

Grinding weld spatter flush can create a second problem if the operator removes too much parent metal. A deep grinding hollow reduces local wall thickness and creates a stress concentration. On a lightly loaded garment rail, this may not cause immediate failure. On a cantilevered display rack or a rack with concentrated garment loads, it can contribute to fatigue cracking.

The correct surface is continuous and blended. It has no raised spatter, sharp crater lip, or abrupt transition. The weld should be ground only as far as needed to remove projections and establish a fabric-safe radius. The underlying structural section must remain intact.

A rack manufacturer using a zinc-plated substrate or galvanized tube must also manage the surface chemistry before coating. Zinc surfaces can release gas during curing and can interfere with adhesion if cleaning and pretreatment are inadequate. The coating process must be selected for the substrate, not applied as though every steel surface behaves identically.

Structural load and snag risk are separate inspections

Load testing confirms whether the rack carries weight without unacceptable deflection, yielding, or connection failure. It does not confirm that the garment-contact surface is safe.

A rack can pass a load test and fail a textile-contact inspection. Conversely, a rack can have a smooth finish while being structurally under-designed. These are separate performance categories:

Treating these as one inspection creates false confidence. “The rack is strong” does not mean “the rack is safe for garments.”

Texture failures: orange peel, powder spitters, and abrasive finishes

A powder coated surface should not be evaluated only by gloss level or color uniformity. Texture determines friction. Friction determines how a garment behaves when it slides across a rail, bracket, hook, or frame.

Orange peel is a bumpy, dimpled texture caused by incorrect powder flow, excessive film thickness, or unsuitable curing conditions. The surface resembles a field of shallow irregularities rather than a continuous smooth film. The defect may be visually tolerated on industrial equipment. Retail garments apply a different standard.

A garment moved across an orange-peel surface experiences repeated micro-contact. The effect is abrasive rather than puncturing. Fine fibers can fuzz, pill, or catch. The damage may not appear after one contact. It develops through repeated handling, especially where staff reposition garments several times per day.

Powder spitters and powder puffs

Powder spitters are localized accumulations of coating material that cure as raised bumps. They can result from poor powder fluidization, moisture contamination, unstable gun output, or intermittent discharge from the application equipment.

The defect profile is different from orange peel:

• Orange peel affects a broader area and produces distributed texture.
• Powder spitters produce discrete elevations.
• A spitter can have a sharper perimeter or a harder central peak.
• The defect is often concentrated near changes in geometry, recessed areas, or zones with unstable spray coverage.
• Repeated garment movement can polish the high point while leaving the surrounding film intact, concentrating wear at one location.

Moisture in the powder can destabilize application and create inconsistent deposition. Powder storage, hopper conditions, compressed-air quality, and fluidization settings therefore affect the finished rack. The issue is not limited to the spray operator’s technique.

A powder spitter that can be felt through a gloved hand should not remain on a garment-contact surface. Gloves reduce the chance of a cut. They do not simulate fabric behavior. A clean, low-lint cloth or a sacrificial fabric sample is a more relevant detector.

Excessive film thickness

A thick film is not automatically a durable film. Powder coating performance depends on the chemistry, substrate preparation, cure profile, and film thickness working together.

A single-coat thickness above approximately 120 microns enters a risk zone. The coating can lose flexibility, trap gas, develop poor intercoat behavior, or crack at edges and weld transitions. Thick application can also exaggerate orange peel because the film does not flow into a uniform surface before gelation and cure.

The opposite error is under-application. Thin areas have reduced corrosion protection and lower resistance to impact. Both conditions can occur on the same rack. Broad tube faces may receive an acceptable film while corners, inner joints, and edges receive too little material.

This is why a single thickness measurement from the center of a vertical post proves very little. A useful coating survey samples:

• The center of each major tube face.
• Outer corners and radiused bends.
• Weld zones.
• Inner corners.
• Bracket interfaces.
• Base plates and castor mounts.
• The underside of horizontal rails.
• Areas adjacent to drilled holes or cut ends.

The target is not the maximum possible thickness. It is a controlled, continuous film within the coating system’s specified range.

Abrasion is cumulative

Retail racks are handling equipment. Garments are lifted, dragged, rotated, compressed, and removed under time pressure. The surface sees more contact cycles than a static architectural coating.

A rough finish can damage stock through several mechanisms:

1. Thread capture. A raised defect catches a yarn and pulls it out of the weave.

2. Frictional wear. Repeated sliding abrades fibers at the same contact zone.

3. Pilling. Surface fibers are loosened and rolled into pills, especially on knitwear.

4. Coating transfer. A poorly cured film may deposit residue on fabric or hangers.

5. Corrosion staining. Abrasion exposes steel, allowing rust products to migrate onto garments.

The rack does not need to have visible rust for the first four mechanisms to occur. Surface texture must therefore be controlled before the unit enters the sales floor.

Gas entrapment and pinholes: hidden risks of porous substrates

Pinholes are small voids or openings in the cured coating. Outgassing craters are larger defects formed when gas escapes from the substrate or from beneath the coating during heating. Both defects interrupt the protective film.

Porous cast metal, galvanized steel, zinc-rich surfaces, contaminated substrates, and trapped moisture can release gas during the powder cure. The escaping gas pushes through the softening coating and leaves a crater, bubble, or raised rim. Once cured, the defect may present a sharp edge that catches fibers.

The visible size is not a reliable measure of risk. A small crater can penetrate the full film thickness. A larger depression may be shallow but can retain cleaning chemicals and moisture. The inspection must determine whether the substrate is exposed and whether the defect has a raised perimeter.

Why galvanized and zinc-plated steel require process control

Zinc-plated and galvanized surfaces are not interchangeable with bare mild steel. Their surface chemistry affects cleaning, pretreatment, adhesion, and outgassing behavior.

If the substrate is contaminated with oil, moisture, conversion residues, or loosely bonded zinc products, the powder may form a film without establishing a reliable bond. During curing, trapped gases can produce bubbles or craters. During use, the coating can chip away from the contaminated interface.

A reliable process generally requires:

• Removal of oil and forming residues.
• Controlled cleaning appropriate to zinc-bearing surfaces.
• Surface activation or conversion treatment compatible with the powder system.
• Adequate drying before spray application.
• Storage conditions that prevent condensation.
• A cure profile based on actual metal temperature rather than oven air temperature alone.

The last point is routinely misunderstood. An oven display reading 350°F does not prove that a heavy bracket or dense weld zone has reached the required substrate temperature. The rack must reach the cure temperature through its coldest section. The standard cure window is commonly 10–15 minutes after the substrate reaches the target temperature, but the correct schedule depends on the powder formulation and part mass.

Pinholes and garment contamination

A pinhole does not usually snag a garment because the hole itself is microscopic. Its risk comes from the surrounding geometry and the corrosion path it creates.

A crater rim can act as a small hook. A breached coating can admit moisture. Corrosion can then expand beneath the film, lifting adjacent coating and producing a larger rough area. On a rack used in a humid stockroom, near a loading door, or in a space cleaned with aggressive chemicals, this progression accelerates.

Rust staining is particularly damaging because it transfers contamination to light-colored apparel. The first indication may be an orange or brown mark on a garment rather than visible corrosion on the rack. Once that occurs, the coating has already ceased to function as a continuous barrier at that point.

Pinholes are not cosmetic voids. They are discontinuities in the corrosion barrier and potential initiation points for coating lift.

Distinguishing outgassing from impact damage

Outgassing defects are usually associated with the curing event. They often appear as clusters around welds, cast sections, drilled ends, or galvanized areas. Impact damage occurs after the rack has entered service and usually shows a directional chip, dent, or exposed metal at a contact point.

The distinction matters because the corrective action differs:

• Outgassing: revise substrate preparation, drying, preheating, venting, or coating selection.
• Impact damage: assess handling, packaging, rack geometry, and local film toughness.
• Poor adhesion: investigate cleaning, pretreatment, cure, and contamination.
• Corrosion undercutting: remove unstable coating, treat the substrate, and restore a compatible system.

Painting over an active crater or rusted chip does not restore the original barrier. It hides the defect until the new layer fails.

Adhesion failure and corrosion: why peeling coatings stain garments

Chipped powder coating on metal racks is a mechanical and chemical failure. The chip creates an exposed edge. The edge is easily lifted by hangers, cleaning tools, and garment contact. If the steel beneath is exposed, corrosion begins according to the environment and the condition of the substrate.

Commercial display racks often operate in environments with variable humidity, frequent cleaning, and high contact frequency. A rack near an entrance or loading area sees condensation cycles. A rack in a fitting-room zone sees repeated contact with hands, metal hooks, and cleaning equipment. A rack in a stockroom may be exposed to cardboard dust, moisture, and temperature changes.

The coating has to survive the actual environment. A finish selected only for color or initial appearance has no engineering basis.

Causes of commercial display rack paint peeling

Powder coating can peel or chip for several distinct reasons:

• The steel was not adequately cleaned.
• Oil, silicone, dust, or lint remained on the substrate.
• Pretreatment was incompatible with the metal or powder chemistry.
• The coating was under-cured.
• The film was excessively thick and became brittle.
• The substrate moved or flexed at a welded joint.
• The rack suffered impact during transport or installation.
• Corrosion developed beneath the coating.
• Sharp edges received insufficient coverage and initiated delamination.

Poor adhesion is often misdiagnosed as a coating-quality problem when the underlying cause is preparation. Powder is not a substitute for surface preparation. It bonds to the prepared substrate through a combination of mechanical and chemical adhesion. If the interface is contaminated or chemically unstable, a visually uniform film can fail under modest impact.

Under-cure versus over-cure

Under-cured powder may have reduced hardness, incomplete cross-linking, weak adhesion, and poor chemical resistance. It can feel soft or may mark under pressure. Over-cure can produce embrittlement, discoloration, or reduced performance depending on the formulation.

The oven air temperature and elapsed time are not sufficient records. The relevant variables include:

• Actual substrate temperature.
• Time at or above the required cure temperature.
• Part thickness and thermal mass.
• Rack loading density in the oven.
• Air circulation.
• Powder formulation.
• Surface color and emissivity, where infrared measurement is used.
• Location of the coldest section.

A thin rail and a heavy welded base do not reach temperature at the same rate. If the process is set for the rail and the base is removed too early, the assembly may contain both adequately cured and under-cured zones.

Rust bleed and fabric damage

Rust bleed is the migration of corrosion products through a coating or from an exposed edge. It may appear as a narrow line along a weld, a brown halo around a chip, or staining beneath a joint.

The risk increases at:

• Cut tube ends.
• Drilled holes.
• Weld undercuts.
• Sharp corners.
• Threaded fasteners.
• Unsealed hollow sections.
• Damaged castor brackets.
• Areas where the coating has been worn by repeated hanger movement.

Rust is not merely an appearance issue. Corrosion products are particulate and abrasive. They can transfer to fabric, act as a friction source, and enlarge the damaged area. A garment that touches a rust-bleeding bracket may acquire a stain before the rack shows measurable structural section loss.

Retail garment rack rust prevention therefore begins with geometry and process control. Rounded edges, sealed ends, compatible pretreatment, complete coverage, correct cure, and prompt repair of chips are more effective than applying a thicker coat over an unsuitable surface.

The Faraday cage effect: vulnerabilities in joints and sharp edges

Powder application is electrostatic. The powder particles carry an electrical charge and are attracted to the grounded metal substrate. This process is efficient on broad, exposed surfaces. It becomes less reliable inside recesses, around sharp corners, and in enclosed joints.

The Faraday cage effect causes charged powder to be repelled from recessed areas and internal corners. Edge pull creates a different problem: the coating retreats or becomes thin near sharp edges because the film flows away from the high-energy geometry during curing.

The result is uneven protection. The rack can look uniformly coated from several feet away while vulnerable areas remain undercoated.

Locations most affected

Inspect these areas with direct lighting and magnification where necessary:

• The inside of square-tube corners.
• The junction between a rail and upright.
• The underside of mounting flanges.
• The perimeter of punched or drilled holes.
• Sharp corners on base plates.
• Bracket interiors.
• Tube ends and recessed caps.
• Weld toes and undercuts.
• The inner face of folded sheet components.

The surface may be too thin to resist impact or corrosion even when the broad face measures within the target DFT. If the edge is visually bright, rough, or different in texture from the surrounding area, it requires closer inspection.

Edge radius has a direct coating consequence

Sharp steel edges are difficult to coat consistently. They also concentrate contact force and cut or catch fabric more easily. Edge preparation is therefore both a coating-control measure and a garment-protection measure.

A rounded edge gives the powder a more stable transition and reduces the likelihood of a bare or thin apex. It also reduces local stress when fabric or a hanger passes across the edge. The exact radius depends on the component and manufacturing standard, but a knife edge should not be accepted on a garment-contact path.

The same rule applies to drilled holes. A burr left after punching or drilling can remain dangerous even when fully coated. Deburring removes the mechanical projection. Coating protects the prepared edge. Neither operation replaces the other.

Weld geometry and coating continuity

A weld can be structurally sound and still be unsuitable for direct garment contact. Undercut creates a groove adjacent to the weld bead. Excess reinforcement creates a raised ridge. Craters and pores create local discontinuities. Spatter creates isolated projections.

The finished geometry should be examined before coating and again after coating. Powder can hide a defect, but it cannot correct the profile. If a rail is intended to carry garments directly, the weld transition should be blended and free from hard projections.

For modular racks, the connection hardware also matters. Exposed bolt heads, retaining clips, spring ends, and castor stems can become secondary snag points. The powder finish on the tube is irrelevant if a fastener projects into the garment path.

Maintaining optimal film thickness to prevent inventory damage

Film thickness must be controlled as a distribution, not as a single nominal value. The practical target for many powder systems is approximately 60–80 microns, while the broader standard range is commonly 50–125 microns. The coating manufacturer’s specification remains the controlling document because resin chemistry and application method change the acceptable range.

A single coat above 120 microns is a danger zone. It increases the probability of cracking, poor adhesion, trapped gas, and edge defects. A film below the system minimum may fail to provide adequate corrosion protection or impact resistance.

A useful inspection sequence

A receiving or quality-control inspection can follow this order:

1. Map the garment-contact path. Mark every rail, hook, bracket, corner, and support that can touch fabric during normal handling.

2. Perform a dry cloth drag test. Use a clean, low-lint cloth and apply light, consistent pressure. A catch indicates a projection, crater rim, spitter, burr, or flaking edge.

3. Inspect welds and transitions. Look for spatter, undercut, sharp reinforcement, pinholes, and coating bridging.

4. Check film continuity. Examine edges, inner corners, holes, tube ends, and recessed joints.

5. Measure DFT at representative points. Sample broad faces and vulnerable geometry. Do not rely on one central reading.

6. Assess adhesion where failure is suspected. Chipped or peeling areas require investigation rather than cosmetic touch-up.

7. Look for early corrosion. Brown halos, orange streaks, and staining around edges indicate barrier failure.

8. Verify cure records. The record should show substrate temperature and time at temperature, not only oven settings.

9. Repeat after installation. Transport and assembly can create chips that were absent at the factory.

This sequence is more useful than a general visual approval because it follows the actual damage path from projection to fabric contact, then from coating breach to corrosion.

DFT ranges and failure exposure

The table describes process exposure, not an automatic pass-or-fail decision. A 70-micron film can fail if the substrate is contaminated. A 110-micron film can perform adequately if the powder system allows it and the cure is correct. Thickness is necessary data, not the complete quality judgment.

Powder coating versus plated and polished finishes

Powder coated steel is often compared with chrome plating, polished stainless steel, polished copper, brushed brass, or a mirror black polish finish as though surface appearance determines performance. It does not. Each finish has a different failure mode.

Powder coating forms a polymer film over the substrate. Metal plating deposits a metallic layer, often over an intermediate system, and polished stainless steel relies primarily on the corrosion resistance and surface condition of the metal itself. The finish selected for a garment rack must match the load, contact pattern, cleaning regime, and corrosion exposure.

The comparison is not an argument for one finish in every application. A high-quality powder coating is not inherently inferior to chrome plating. A poorly prepared chrome-plated rack is not automatically safer for garments. Surface continuity, edge treatment, adhesion, and maintenance determine the result.

Polished metals are not defect-free by definition

Polished stainless steel racks can develop scratches, burrs, and directional polishing defects. Plated racks can lose their finish at high-contact points. Copper and brass surfaces can oxidize or become rough where the protective layer is damaged. A mirror black finish can conceal chips until corrosion develops at the exposed steel.

The inspection principle remains constant: test the contact surface, examine transitions, and identify the substrate beneath any damaged finish.

When powder coating is the rational choice

Powder coated steel is appropriate when the rack requires controlled color, broad corrosion protection, and resistance to normal handling. It is especially suitable when the manufacturer can document:

• Proper substrate preparation.
• A compatible pretreatment.
• Controlled DFT.
• Verified cure conditions.
• Smooth weld transitions.
• Inspection of edges and recessed joints.
• A repair procedure for installation damage.

The coating should be specified by system and performance, not by a color name alone. “Black powder coat” describes almost nothing about resin chemistry, pretreatment, film thickness, cure schedule, or abrasion resistance.

Maintenance after installation

Maintenance cannot correct a defective manufacturing process, but it can prevent minor damage from becoming a garment-contact failure.

Use neutral cleaning products compatible with the coating system. Avoid abrasive pads, aggressive solvents, and improvised scraping tools. Abrasive cleaning removes the film at corners and contact zones. Strong chemicals can soften or attack the binder, depending on the formulation.

Inspect high-contact areas at a frequency based on use. A rack in a high-volume fashion store receives more hanger movement than a rack used for occasional merchandising. Focus on:

• Rail tops and undersides.
• Hook contact points.
• Castor brackets.
• Base plates.
• Adjustable joints.
• Areas near fitting rooms and service counters.
• Locations where metal hangers repeatedly strike the coating.
• Any point where a garment has already snagged.

If the coating is chipped, remove unstable flakes before repair. Do not seal loose material under a touch-up layer. Clean the exposed substrate, remove corrosion products, and use a compatible repair coating. A touch-up mark is not the issue. The issue is whether the repaired area has a stable edge, adequate barrier protection, and no projection into the garment path.

A rack with recurring chips at the same joint may have a structural movement problem. Repeated flexing can break the coating even when the rack remains within its nominal load rating. Check the connection, weld, fastener, and local deflection rather than repainting the symptom.

A rule-based selection method

The finish decision should follow the operating conditions.

For low-contact garment display with light loads and controlled indoor humidity, powder coated steel is acceptable when the surface is smooth, the DFT is controlled, and the cure is verified.

For high-contact rails carrying delicate garments, reject any unit with weld spatter, powder spitters, orange peel severe enough to create cloth drag, raised crater rims, chipped edges, or flaking adhesion. The rail is a textile-contact component. It requires a higher surface standard than a static warehouse shelf.

For humid environments, loading areas, washdown zones, or stores with frequent chemical cleaning, specify a corrosion-control system suitable for the substrate and environment. Inspect tube ends, welds, drilled holes, and edges first. These locations fail before the broad faces.

For high loads, separate the finish specification from the structural specification. Select the tube section, gauge, weld design, bracket geometry, and connection system for the load. Then select the coating system for contact, corrosion, and maintenance. A thick decorative coating cannot compensate for inadequate steel section or poor weld design.

For racks carrying silk, satin, lace, fine knitwear, or other snag-sensitive products, use a no-catch acceptance standard. Visual uniformity is insufficient. The surface must pass tactile and cloth-drag inspection across the complete garment path.

Definitive recommendation

Specify powder coated garment racks only when the manufacturer can control both the substrate and the coating process. Require smooth blended welds, no spatter, no burrs, no raised powder spitters, no sharp crater rims, and no visible or tactile flaking. Target approximately 60–80 microns where the powder system permits it. Treat a single-coat thickness above 120 microns as a process warning, not as additional protection. Verify cure by substrate temperature and time at temperature.

For light garments in dry interiors, a correctly cured powder coated steel rack is a sound choice. For heavy loads, increase the structural section and connection capacity; do not use coating thickness as a substitute. For humid or chemically exposed locations, prioritize pretreatment, edge coverage, sealed tube geometry, and corrosion inspection. For delicate fabrics, reject any rack that catches a clean cloth, regardless of its load rating or initial appearance.

The governing rule is direct: select the rack by load, select the coating by environment, and accept the finish by fabric contact. Any other sequence leaves inventory exposed to a failure that the structure may never reveal.
